Servo - Hitec HS-625MG (Standard Size) [SF-ROB-11885]

Servo - Hitec HS-625MG (Standard Size)

Servo - Hitec HS-625MG (Standard Size) [SF-ROB-11885]

Price: $72.72
This product is currently unavailable for purchase
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

Photo of Servo - Hitec HS-625MG (Standard Size) Photo of Servo - Hitec HS-625MG (Standard Size) Photo of Servo - Hitec HS-625MG (Standard Size) Photo of Servo - Hitec HS-625MG (Standard Size) Photo of Servo - Hitec HS-625MG (Standard Size) Photo of Servo - Hitec HS-625MG (Standard Size) Photo of Servo - Hitec HS-625MG (Standard Size) Photo of Servo - Hitec HS-625MG (Standard Size)

Description

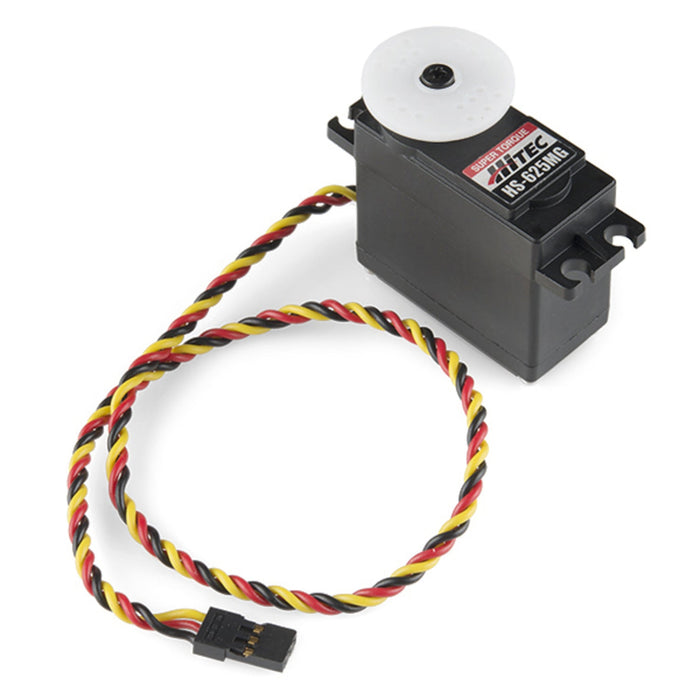

This powerful motor is the Hitec HS-625MG servo. This is one of the strongest metal gear servos that is available and at a great price. The HS-625MG is able to take in 6 volts and deliver 94 oz-in. of maximum torque at 0.15sec/60°, and those are numbers you can rely on!

This high quality servo is perfect for your mechatronic needs and if you are looking to get into robotics, this is where to start. The HS-625MG servo comes standard with a 3-pin gold plated power and control cable and all hardware listed below.

Features:

  • Voltage: 4.8-6.0 Volts
  • Torque: 76.37/94.43 oz-in. (4.8/6.0V)
  • Speed: 0.18/0.15 sec/60° (4.8/6.0V)
  • Direction: Clockwise/ Pulse Traveling 1500-1900usec
  • Rotation: 180°
  • Dual Ball Bearing
  • 3 Metal Gears & 1 Resin Metal Gear
  • 3-Pole Ferrite Motor
  • C1 Standard Spline

Includes:

  • 1x HS-625MG Servo
  • 1x Double Arm Horn
  • 1x Single Arm Horn
  • 1x Four Point Horn
  • 2x Circle Horn (1x Small White, 1x Large Black)
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

Dimensions:

  • 40.6 x 19.8 x 36.6mm
  • Wire Length: 300mm
  • Weight: 55.2g

Documents:
