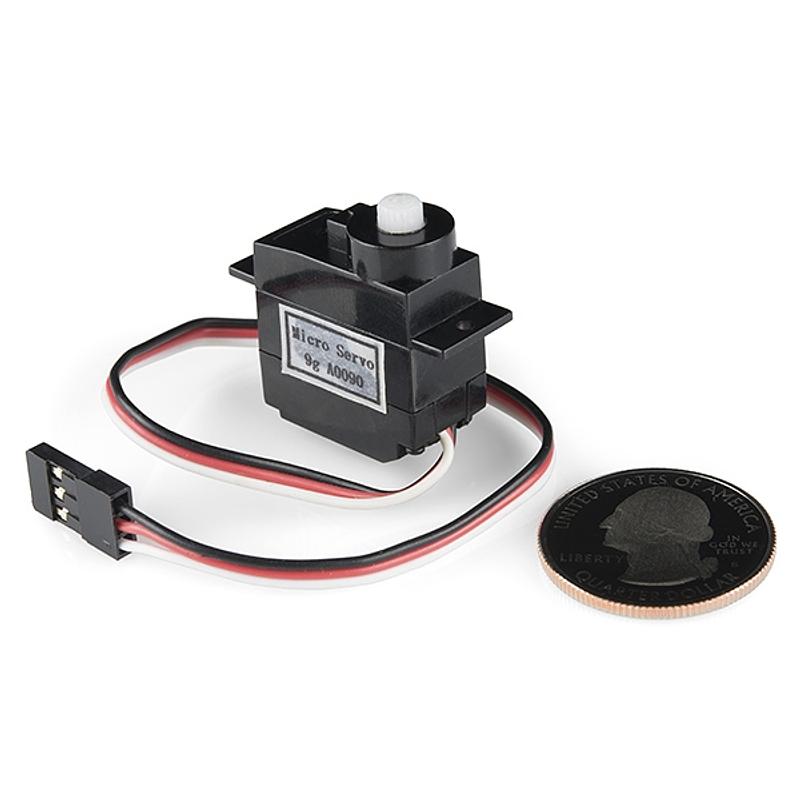

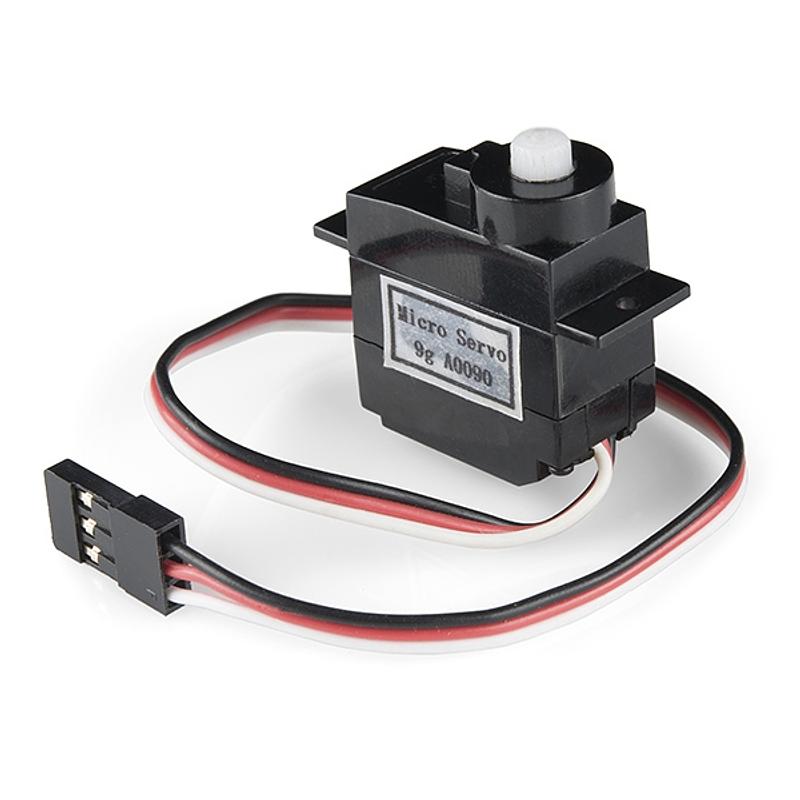

Servo - Generic (Sub-Micro Size)
Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is very similar in size and specifications to the Hitec HS-55. This...
Here is a simple, low-cost, high quality servo for all your mechatronic needs. This servo is very similar in size and specifications to the Hitec HS-55. This little guy is able to take in 6 volts and deliver 20.8 oz-in. of maximum torque at 0.10 sec/60°
This small servo comes with a standard 3 pin power and control cable, and all hardware listed below.
Note: This servo is rated for 180° rotation, but in actuality it only hits ~160°.
Features:
- Voltage: 4.8-6.0 Volts
- Torque: 16.6/20.8 oz-in. (4.8/6.0V)
- Speed: 0.15/0.10 sec/60° (4.8/6.0V)
- Rotation: ~160°
- Single Top Ball Bearing
- Nylon Gears
- 3-Pole Ferrite Motor
Includes:
- 1x Micro Size Servo
- 1x Single Arm Micro Horn
- 1x Double Arm Micro Horn
- 1x Four Point Micro Horn
- 1x Circle Micro Horn
- 2x 2x8mm Phillips Screw
Dimension:
- 31.8 x 11.7 x 29mm
- Wire Length: 160mm
- Weight: 9g
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- servo
- A servo is a motor with built-in position control, usually told to move to a specific angle by a control signal. It matters when you need repeatable movement, such as steering, arms, flaps, or linkages, rather than continuous spinning.
- Torque
- A twisting force that causes something to rotate, usually measured in newton-metres or kilogram-centimetres. It matters when choosing motors, servos, gears, and tools because higher torque is needed to lift heavier loads, turn larger wheels, or move mechanisms without stalling.
