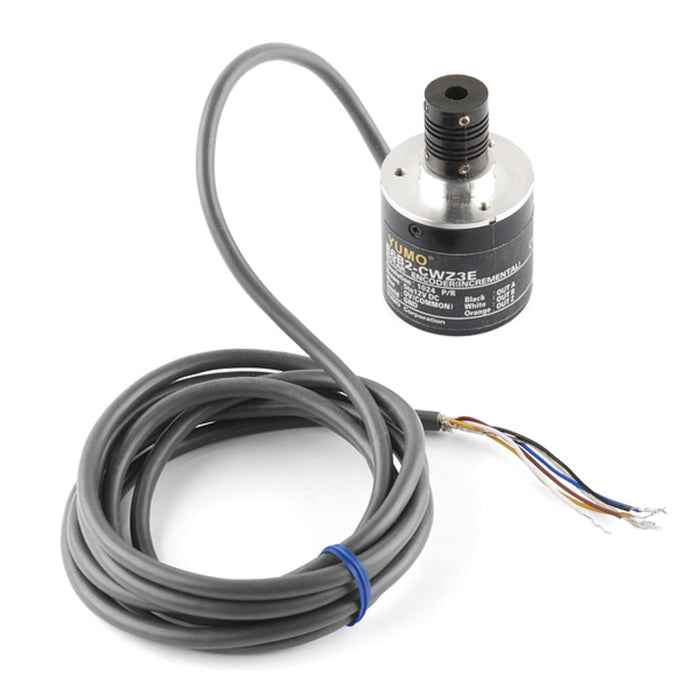

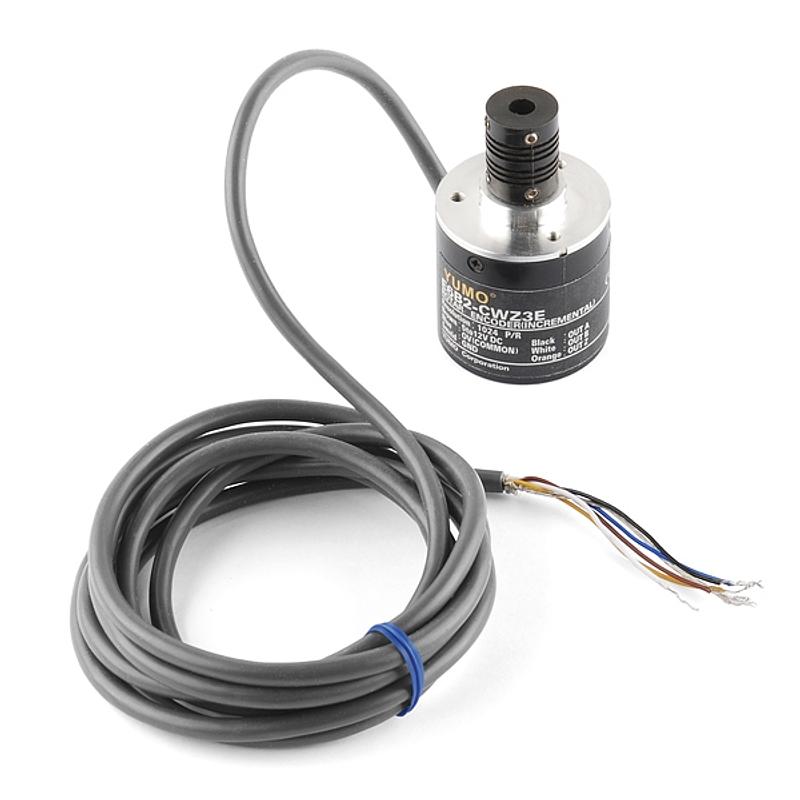

Rotary Encoder - 1024 P/R (Quadrature)
This 1024 pulse per rotation rotary encoder outputs gray code which you can interpret using a microcontroller and find out which direction the shaft is turni...
Get notified when back in stock
This 1024 pulse per rotation rotary encoder outputs gray code which you can interpret using a microcontroller and find out which direction the shaft is turning and by how much. This allows you to add feedback to motor control systems. Encoders of this kind are often used in balancing robots and dead reckoning navigation but it could also be used as a very precise input knob.
Features:
- Resolution: 1024 Pulse/Rotation
- Input Voltage: 5 - 12VDC
- Maximum Rotating Speed: 6000rpm
- Allowable Radial Load: 5N
- Allowable Axial Load: 3N

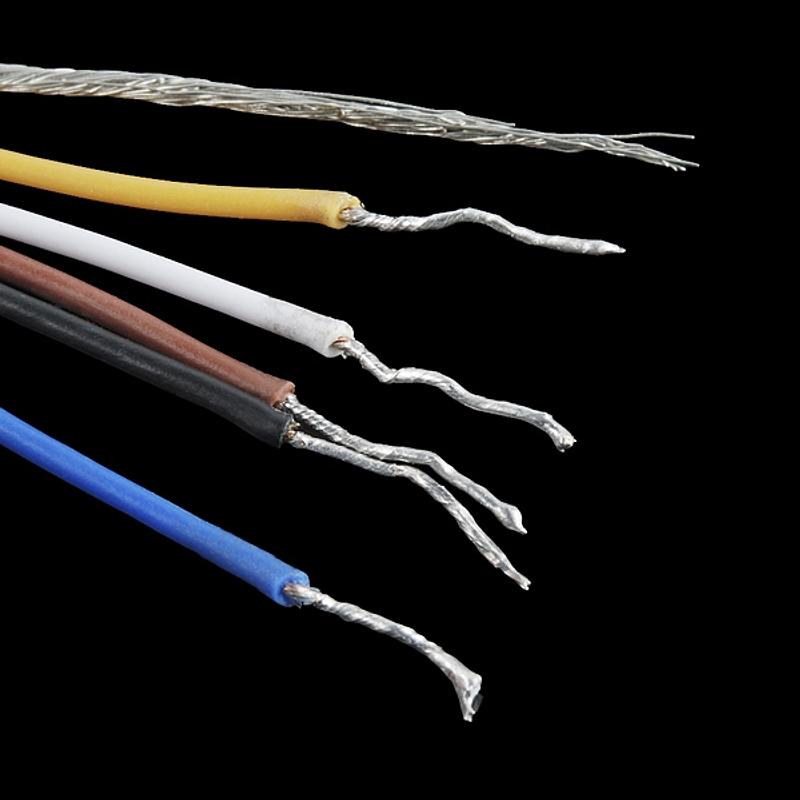

- Cable Length: 50cm
- Shaft Diameter: 6mm
Documents:
- Datasheet (A6B2-CWZ3E-1024)
- Example Code
Jargon buster
Plain-language definitions for the technical terms used above.
- Axial
- Axial components have one lead coming out of each end, so they lie flat or span holes on a circuit board or breadboard. This matters when checking whether the resistor will physically fit your prototyping or through-board assembly method.
- encoder
- An encoder is a sensor that converts the rotation or position of a shaft, knob or dial into electrical signals, reporting movement as incremental steps and direction, or as an absolute position. It is used to track how far something has turned, which matters for precise positioning, speed control, repeatable movement, or using a rotary knob as an input.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
