$15.05
|
In stock
This product has been used in building intercom and access control products for many years, it has high stability and strongest anti-interference ability. Th...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

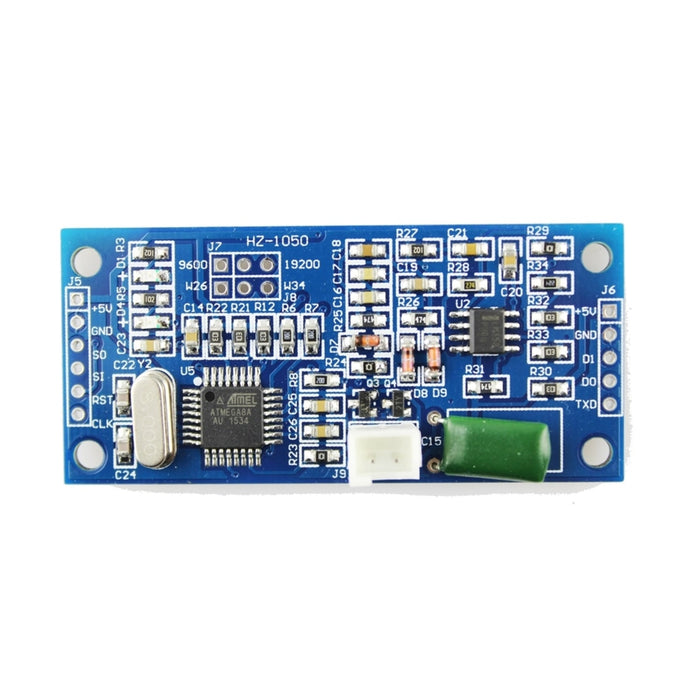

This product has been used in building intercom and access control products for many years, it has high stability and strongest anti-interference ability. The ATMEGA8 of this module is a high- performance AVR MCU of AVR family. It’s easy to use and small enough to be embedded into your system. It will perform well in your projects.
Features
- Wiegand 26/34 optional
- Wiegand data output and the uart ID output simultaneously, baud rate 9600/19200 optional.
- Four mounting holes, can be installed on your product (can be customized according to customer size).
- The coil can swap, in the actual use, the replacement device does not require effort to dismantle the coil.
- Use an external crystal
- Lighting instructions
- A square coil, more suitable for use in building intercom, access control and other products.
- SMT machine batch processing.
Specification
- Support card type: Read-only ID card (EM4100 / 4001, etc.)
- Support card Frequency: 125K
- Read Range: 3-10CM
- Reader Time: Less than 0.2 seconds
- Output interface: Wiegand 26/34 optional; UART serial output, TTL level (selectable baud rate)
- Relative Humidity( Work): 20% -90% RH
- Relative Humidity(Storage): 10% -90% RH
- Environmental temperature requirements:-55℃ - 125℃
- Standard size: 29MM * 62MM
- Coil size: 35MM * 54MM
- Coil lead: 10CM
Jargon buster
Plain-language definitions for the technical terms used above.
- AVR
- AVR is a family of 8-bit microcontrollers (made by Microchip, formerly Atmel) used in many classic Arduino-style boards such as the Uno and Nano. They are widely supported but older, which can be a limit for memory- or speed-intensive tasks.
- baud
- Baud is the signalling rate of a serial connection, often used as the speed setting for UART communication. Matching the baud rate matters because both connected devices must use the same setting for readable data.
- UART
- UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.
