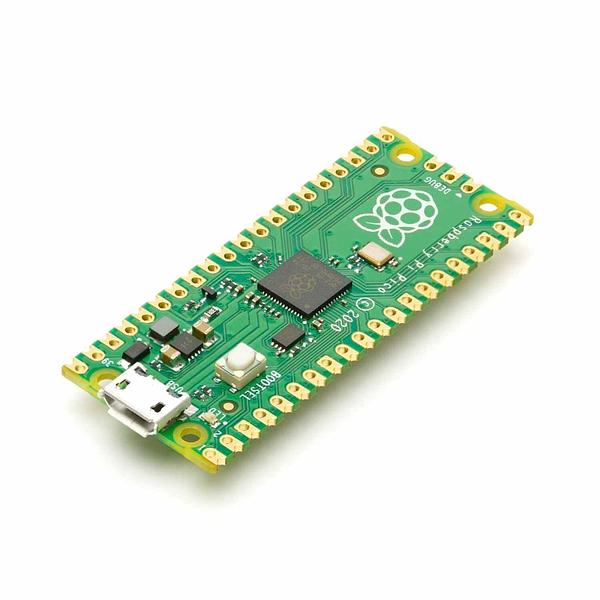

Raspberry Pi Pico Raspberry Pi Pico (without Headers) [RP-PICO]

Raspberry Pi Pico Raspberry Pi Pico (without Headers)

Raspberry Pi Pico Raspberry Pi Pico (without Headers) [RP-PICO]

Price: $5.75
Fastest delivery: Friday, 29th October
Order before 2pm Wednesday, 27th October
We have 591 in our Sydney warehouse.
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers) Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers) Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers) Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers) Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers) Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers) Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers) Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers) Photo of Raspberry Pi Pico Raspberry Pi Pico (without Headers)

Description


The real story is: Just like another “fruit company”, Raspberry Pi dove headfirst and  developed their own custom ARM silicon, the RP2040 (learn more about the RP2040)!

Raspberry Pi Pico has been designed to be a low cost yet flexible development platform for RP2040, with the following key features:
  • RP2040 microcontroller with 2MByte Flash
  • Micro-USB B port for power and data (and for reprogramming the Flash)
  • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations

    • Exposes 26 multi-function 3.3V General Purpose I/O (GPIO) ◦ 23 GPIO are digital-only and 3 are ADC capable
    • Can be surface mounted as a module
  • 3-pin ARM Serial Wire Debug (SWD) port
  • Simple yet highly flexible power supply architecture

    • Various options for easily powering the unit from micro-USB, external supplies or batteries
    • High quality, low cost, high availability
  • Comprehensive SDK, software examples and documentation
For full details of the RP2040 microcontroller please see the RP2040 Datasheet, however the headline features are:
  • Dual-core cortex M0+ at up to 133MHz

    • On-chip PLL allows variable core frequency
  • 264K multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP)
  • Dual-core cortex M0+ at up to 133MHz

    • On-chip PLL allows variable core frequency
  • 264K multi-bank high performance SRAM
  • External Quad-SPI Flash with eXecute In Place (XIP)
  • High performance full-crossbar bus fabric
  • On-board USB1.1 (device or host)
  • 30 multi-function General Purpose IO (4 can be used for ADC)

    • 1.8-3.3V IO Voltage (NOTE Pico IO voltage is fixed at 3.3V) • 12-bit 500ksps Analogue to Digital Converter (ADC)
  • Various digital peripherals
    • 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
    • 1 x Timer with 4 alarms, 1 x Real Time Counter • Dual Programmable IO (PIO) peripherals
    • Flexible, user-programmable high-speed IO
    • Can emulate interfaces such as SD Card and VGA

Pico provides minimal (yet flexible) external circuitry to support the RP2040 chip (Flash, crystal, power supplies and decoupling and USB connector). The majority of the RP2040 microcontroller pins are brought to the user IO pins on the left and right edge of the board. Four RP2040 IO are used for internal functions - driving an LED, on-board Switched Mode Power Supply (SMPS) power control and sensing the system voltages.
Pico has been designed to use either soldered 0.1" pin-headers (it is one 0.1" pitch wider than a standard 40-pin DIP package) or can be used as a surface mountable 'module', as the user IO pins are also castellated. There are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow- soldered SMT module.

Customer Reviews

Scott
Rating of 5 StarsVerified Purchase

RP2040 exceeded my expectations

Reviewed on 12 Jul 2021
The Pi Pico is a refreshing devboard. The great documentation guides and simple examples let me implement serial communication to a co...
The Pi Pico is a refreshing devboard. The great documentation guides and simple examples let me implement serial communication to a computer in about half an hour. The vendor-neutral CMake based C/C++ toolchain and GitHub hosted references are easy to work with. Littlebird was one of the few with stock in Australia. Shipped the order out quickly and they arrived in two days with AusPost. Thanks!

Ordering more than 591?

We can get a further 0 units from Raspberry Pi
Shipping: Raspberry Pi (🌐) → Little Bird (SYD) → You
If you order more than 591 units your estimated delivery is: Friday, 5th November — Thursday, 25th November.
This is an estimate only and delivery times vary.
