Rack Tower for Raspberry Pi 4B/ 3B Jetson Nano
Rack Tower stands for a new concept for the 4-layer acrylic case for the cluster.This 4-layer acrylic oversized fan enclosure is a new product designed to pr...

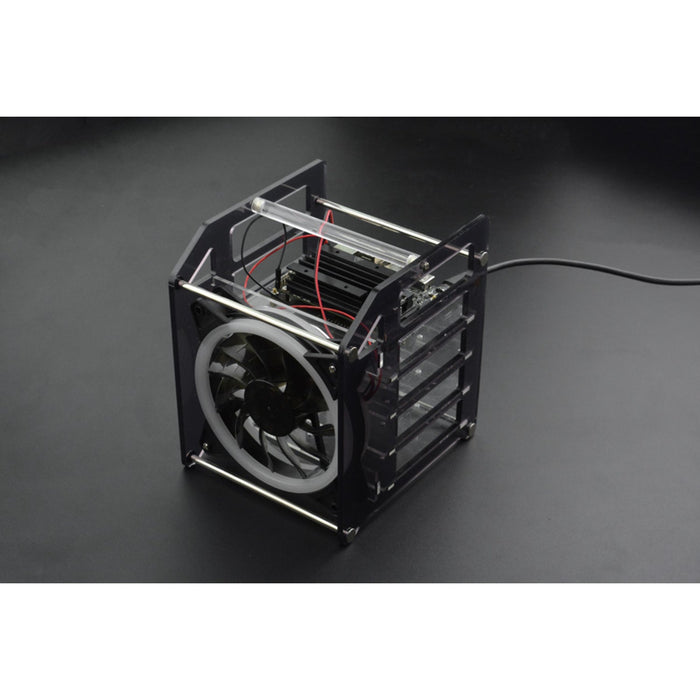

Rack Tower stands for a new concept for the 4-layer acrylic case for the cluster.

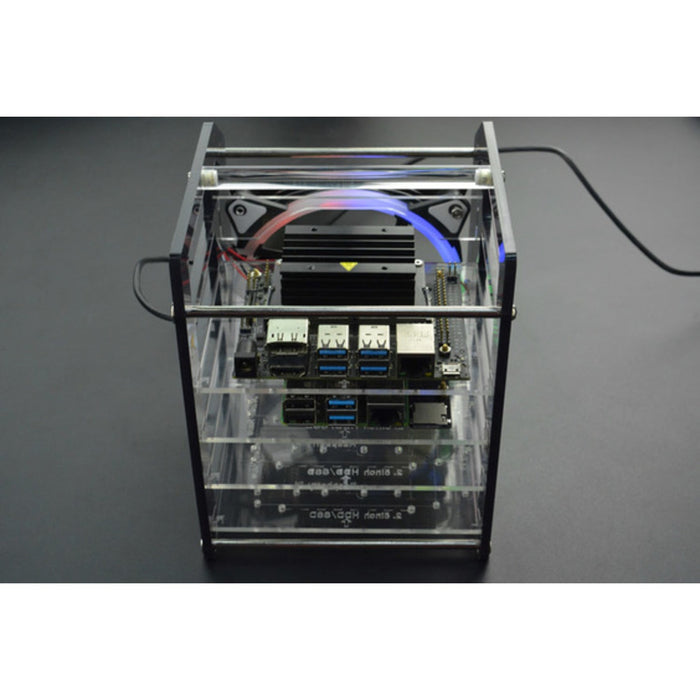

This 4-layer acrylic oversized fan enclosure is a new product designed to provide shell protection and cooling solutions for Raspberry Pi clusters, Raspberry Pi NAS servers, Jetson Nano clusters, and disk array clusters.
It is very delicate. The long fixing screws are designed with flat head screws, smooth and easy to install.
The fool-proof design of the positioning holes can prevent you from having trouble during installation.
In addition, the Micro SD can help us solve the problem that the Raspberry Pi can't plug into the SD card after the installation.
A variety of screws with different specifications can meet your various product fixing needs.
For example, Raspberry Pi, 2.5-inch hard drive, Jetson Nano, and so on.

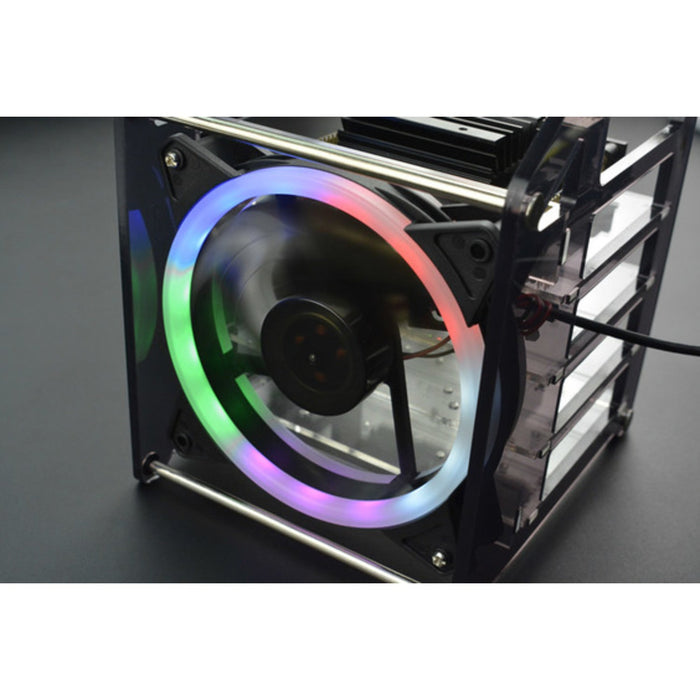

In addition, the large fan is driven by 5V, which can be directly powered by the Raspberry Pi, and it will have a colorful halo when it is running, which is very cool.
Rack Tower & Application Scenario:
FEATURES
- Easy to assemble
- Colorful LED Huge Fan
- Compatible with Raspberry Pi, 2.5MM HDD, Jetson Nano
- Extremely heat dissipation effect
- Crystal Hander easy to carry on
- Flexible Mounting position
SPECIFICATION
- Fan operating voltage：5V

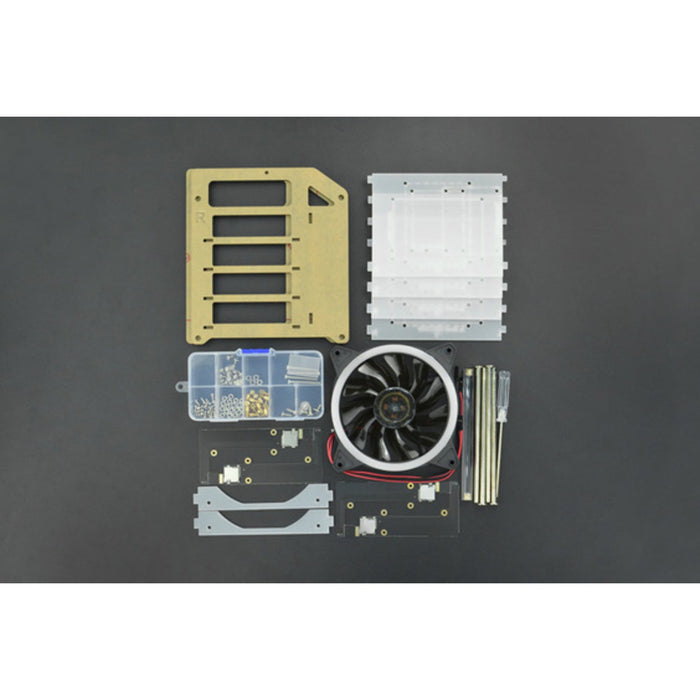

SHIPPING LIST
- Right baffle x1
- Left baffle x1
- Middle interlayer x4
- Fan bracket x2
- 125mm Acrylic cylinder x1
- 130mm Male and female rivet x4
- M3x8mm Screw (for handle) x2
- 120mm RGB LED 5V fan x1
- M3x30mm screw (for 120mm Fan) x4
- M3 nut (for 120mm fan) x4
- M2.5x5+6mm copper column(for RPi) x17
- M2.5 nut (for middle interlayer) x17
- M3x5 wide head screw(for 4 hard disks) x16
- Long transparent screwdriver x1
- Installation instructions x1
- Heat sink Kit for Raspberry Pi 4B x4
- Heat sink Kit for Raspberry Pi 3B x4
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- M2.5
- A metric screw thread size with a 2.5 mm nominal diameter. It matters for mounting because screws, standoffs, and holes must use the same size to fit securely without damaging the board.
- RGB
- Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.
