Qualia Bare Driver Board for LP097QX1 Display

$120.74

Part Number:  AF-1716
Brand:  Adafruit Australia

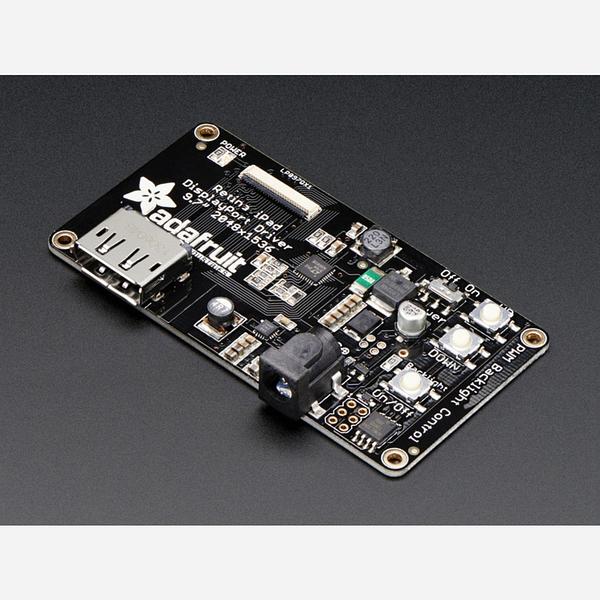

DescriptionThe Qualia Retina driver board is a work of art (it was designed by resident engineer KTOWN). It's used in the Adafruit Qualia 9.7" DisplayPort Monitor Kit and they use the really awesome LT3754 as a 12-channel constant current driver with individual backlight string channel control. This gives the backlight perfect consistency over any usage or temperature range. A ATtiny85 handles the backlight dimming and...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

The Qualia Retina driver board is a work of art (it was designed by resident engineer KTOWN). It's used in the Adafruit Qualia 9.7" DisplayPort Monitor Kit and they use the really awesome LT3754 as a 12-channel constant current driver with individual backlight string channel control. This gives the backlight perfect consistency over any usage or temperature range. A ATtiny85 handles the backlight dimming and soft on/off, so you can PWM the backlight over a range to get the look you want.

This driver is available for advanced users only! The Molex connector that is used to connect to the LG display is insanely delicate and breaks very very very easily if you are not very careful! If you order this driver board and break the connector, it may no longer work and they cannot repair it. If you break it you may have to buy another driver. Adafruit do not offer any returns, refunds or replacements! Do not purchase if you are not comfortable with this risk!

If you'd like a plug-n-play, easy to use kit with the TFT already attached to the delicate connector, please purchase Adafruit's Qualia kit!

Technical Details

  • Dimensions: 45mm x 85mm / 1.8" x 3.4"
  • Mounting Holes Distance: 37mm x 77mm / 1.5" x 3"
  • Weight: 21g

Datasheets, EagleCAD PCB files, and CAD files in the tutorial
