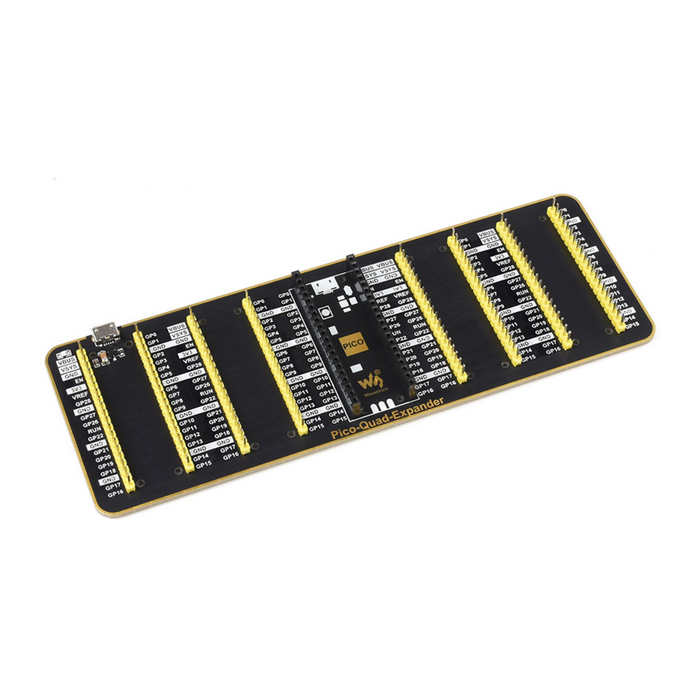

Pico - Quad-Expander IC Test Board
Quad GPIO Expander for Raspberry Pi Pico, Four Sets of Male Headers, USB Power Connector Quad GPIO Expander For Pico Four Sets Of Standard Raspberry ...
Get notified when back in stock
Quad GPIO Expander for Raspberry Pi Pico, Four Sets of Male Headers, USB Power Connector
Quad GPIO Expander For Pico
Four Sets Of Standard Raspberry Pi Pico GPIO Male Headers, USB-Powered Support
Features At A Glance
- Standard Raspberry Pi Pico female header for direct attaching Raspberry Pi Pico (if male header soldered), or just through jumper wires
- Four sets of 2x20 male header, allows connecting more Raspberry Pi Pico expansion modules
- USB power input connector, ensures sufficient power supply for multiple expansion modules
- Clear pinout labels on the front side, easy to use
- Immersion gold process, beautiful & practical, stunning aesthetic looking
Raspberry Pi Pico Header Compatibility
Center Female Pin Header For Direct Attaching The Raspberry Pi Pico
Four Sets Of 2x20 Male Header
Allows Connecting More Raspberry Pi Pico Expansion Modules
Extra USB Connector For External Power Supply
Please make sure there are no pin conflicts between the modules you want to use together before connecting.
Raspberry Pi Pico and expansion modules are NOT included.
Immersion Gold Process
Black Base Panel, White Pinout Labels, Golden Rounded Outline, Stunning Aesthetic
Outline Dimensions
Jargon buster
Plain-language definitions for the technical terms used above.
- GPIO
- General-purpose input/output pins are microcontroller pins you can set in software to read signals, switch devices on and off, or connect to peripherals. The number of GPIO pins matters because it limits how many buttons, LEDs, sensors, and other parts you can wire directly to the board.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
