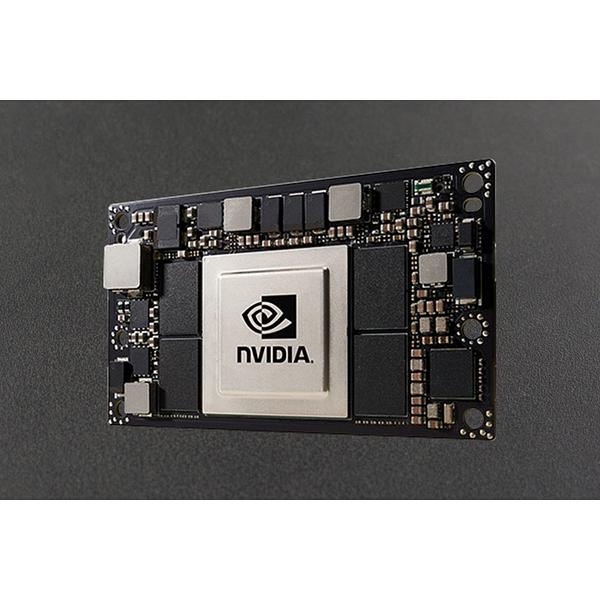

NVIDIA® Jetson™ TX2 gives you exceptional speed and power-efficiency in an embedded AI computing device. This supercomputer-on-a-module brings true AI computing at the edge with an NVIDIA Pascal™ GPU, up to 4 GB of memory, 59.7 GB/s of memory bandwidth, and a wide range of standard hardware interfaces that offer the perfect fit for a variety of products and form factors.

With Jetson TX2, you can now run large, deep neural networks for higher accuracy on edge devices. At just 7.5 watts, it delivers 25X more energy efficiency than a state-of-the-art desktop-class CPU. This makes it ideal for real-time processing in applications where bandwidth and latency can be an issue. These include factory robots, commercial drones, enterprise collaboration devices, intelligent cameras for smart cities.

SPECIFICATION

  • GPU: NVIDIA Pascal™ architecture with 256 NVIDIA CUDA cores

                 1.3 TFLOPS (FP16)

  • CPU: Dual-core Denver 2 64-bit CPU and quad-core ARM A57 complex
  • Memory: 4 GB 128-bit LPDDR4

                         1600MHz - 51.2 GB/s

  • Storage: 16 GB eMMC 5.1
  • Video Encode: 500 MP/sec

                                   1x 4K @ 60 (HEVC)

                                   3x 4K @ 30 (HEVC)

                                   4x 1080p @ 60 (HEVC)

                                   8x 1080p @ 30 (HEVC)

  • Video Decode: 1000 MP/sec

                                   2x 4K @ 60 (HEVC)

                                   4x 4K @ 30 (HEVC)

                                   7x 1080p @ 60 (HEVC)

                                   14x 1080p @ 30 (HEVC)

  • Connectivity: Wi-Fi requires external chip

                                10/100/1000 BASE-T Ethernet

  • Camera: 12 lanes MIPI CSI-2, D-PHY 1.2 (30 Gbps)
  • Display: HDMI 2.0 / eDP 1.4 / 2x DSI / 2x DP 1.2
  • UPHY: Gen 2 | 1x4 + 1x1 OR 2x1 + 1x2, USB 3.0 + USB 2.0
  • Size: 87 mm x 50 mm
  • Mechanical: 400-pin connector with Thermal Transfer Plate (TTP)

DOCUMENTS

Download

The NVIDIA Jetson TX2 4GB Module appears in the following collections:

SKU DF-DFR0688
