Mini Photocell
This is a very small light sensor. A photocell changes (also called a photodetector, photo resistor, CdS or photoconductive cell) resistance depending on the...
Get notified when back in stock

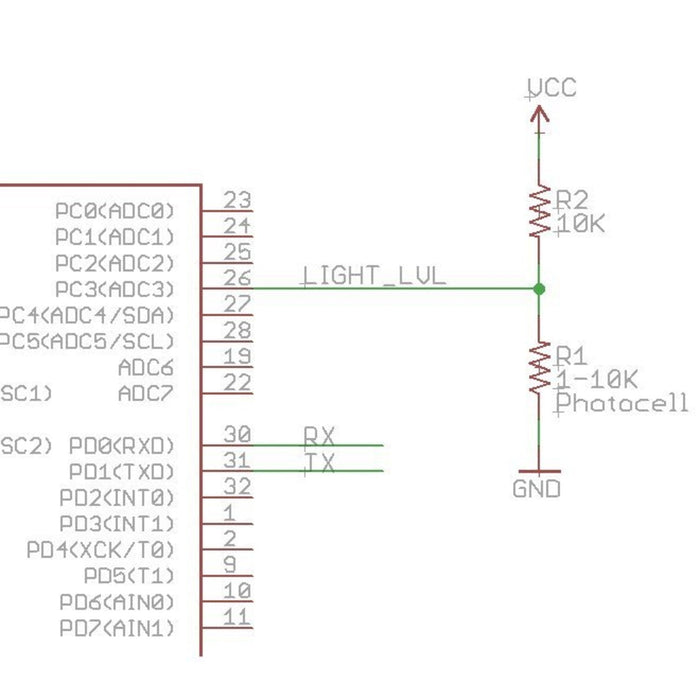

This is a very small light sensor. A photocell changes (also called a photodetector, photo resistor, CdS or photoconductive cell) resistance depending on the amount of light it is exposed to. These little sensors make great ambient light triggers (when light in the room turns on, do something).
Features:
- Light resistance : ~1k Ohm
- Dark resistance : ~10k Ohm
- Max voltage : 150V
- Max power: 100mW

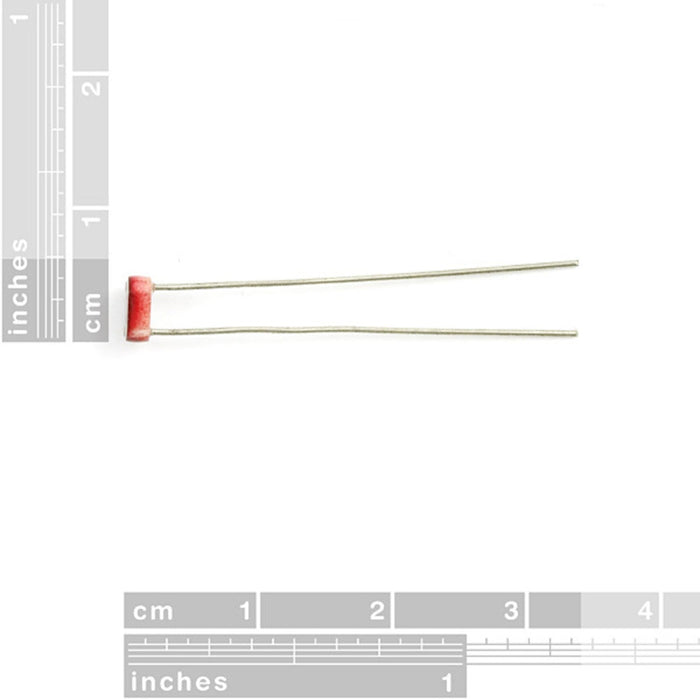

Dimensions:
- 2 x 4 x 5mm
- 4mm between pins
- 31mm lead length
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- photocell
- A light-sensitive component whose electrical resistance changes with the amount of light falling on it. It matters when choosing or using light sensors, automatic lights, or brightness-detecting circuits because its response speed, resistance range, and sensitivity affect how reliably it detects light levels.
