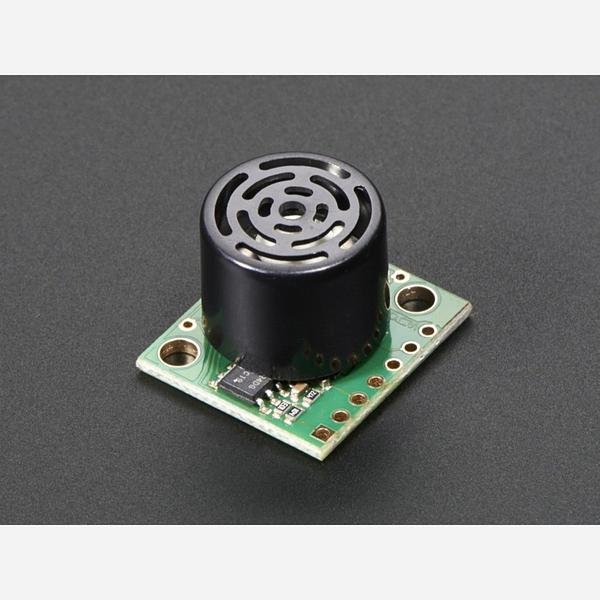

Maxbotix Ultrasonic Rangefinder - LV-EZ2 [LV-EZ2]

$48.42

Part Number:  AF-980
Brand:  Adafruit Australia

DescriptionLV-EZ2 Maxbotix Ultrasonic Rangefinder provides very short to long-range detection and ranging, in an incredibly small package. It can detect objects from 0-inches to 254-inches (6.45-meters) and provides sonar range information from 6-inches out to 254-inches with 1-inch resolution. (Objects from 0 inches to 6-inches range as 6-inches.) The interface output formats included are pulse width output (PWM), analog voltage output (Vcc/512 volts per inch),...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

LV-EZ2 Maxbotix Ultrasonic Rangefinder provides very short to long-range detection and ranging, in an incredibly small package. It can detect objects from 0-inches to 254-inches (6.45-meters) and provides sonar range information from 6-inches out to 254-inches with 1-inch resolution. (Objects from 0 inches to 6-inches range as 6-inches.) The interface output formats included are pulse width output (PWM), analog voltage output (Vcc/512 volts per inch), and serial digital output (9600 baud).

A good sensor for when a Sharp IR distance sensor won't cut it. For example of using this with an Arduino, see the Halloween Pumpkin project.

Many applications require a narrower beam or lower sensitivity than the LV MaxSonar EZ1. Consequently, MaxBotix is offering the EZ2, EZ3, & EZ4 with progressively narrower beam angles allowing the sensor to match the application.

LV-EZ2 Data Sheet / Product Information Guide is available here.






The different LV models have different beam width patterns, check this image for a comparison of all the LV model beam patterns. For higher sensitivity, check out the HR-LV models - they have up to 1mm sensitivity and 5 meter range!



Technical Details

Dimensions:

  • Length: 15.52mm/0.61in
  • Width: 22.36mm/0.88in
  • Height: 20.0mm/0.79in
  • Weight: 4.23g/0.15oz
