Linear Bearing Supported Slide Rail - 15mm wide - 500mm long [AF-1861]

Linear Bearing Supported Slide Rail - 15mm wide - 500mm long

Linear Bearing Supported Slide Rail - 15mm wide - 500mm long [AF-1861]

Price: $67.58
Fastest delivery: Thursday, 16th December
Order before 2pm Monday, 6th December
Available with a lead time
(10 units can dispatch between Dec 15 to Dec 20)
Need more than 0 units?
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

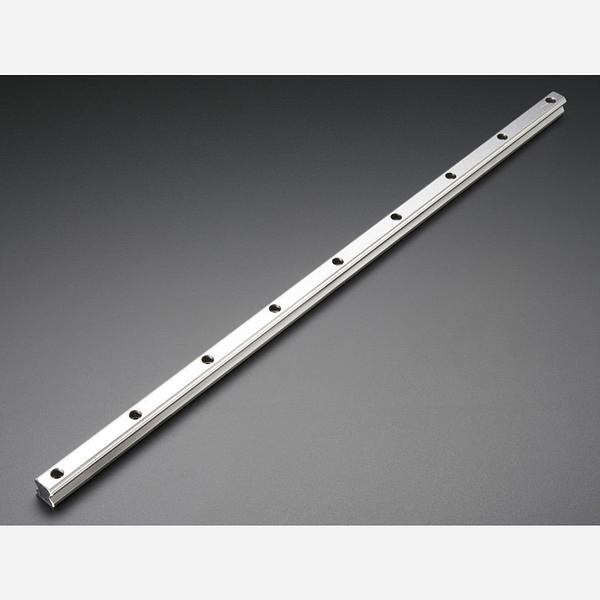

Photo of Linear Bearing Supported Slide Rail - 15mm wide - 500mm long Photo of Linear Bearing Supported Slide Rail - 15mm wide - 500mm long Photo of Linear Bearing Supported Slide Rail - 15mm wide - 500mm long Photo of Linear Bearing Supported Slide Rail - 15mm wide - 500mm long Photo of Linear Bearing Supported Slide Rail - 15mm wide - 500mm long Photo of Linear Bearing Supported Slide Rail - 15mm wide - 500mm long

Description

Do the CNC electric-slide! To the left, now to the right. Now you have no excuse for not building that CNC robot. This is a 'supported style' 15mm wide slide rail makes adding linear motion control easy. This product is the slide rail itself only, it works perfectly with our 15mm Diameter Rail Smaller Slider and the 15mm Diameter Rail Larger Slider. Made of a precision stainless-steel precision railing. It is possible to cut it down to any size but you'll need tools that can cut hardened stainless steel.

The stainless steel rail is strong and straight but works best if bolted down. There are holes in the base for easy attachment to any metal or wood surface. Unlike our rounded rail, this style can support a platform of maybe 5 lbs without needing another support. For best stability, you'll want two of these and then two or more rail sliders for support. Note that these are 'hobby' grade slide rails, the slider only moves with force applied, such as a motor! They are pretty good quality and suitable for DIY robotics projects, but they're not going to have the same smooth action as high-grade (several $100) machine components.

Do not try to attach either slider onto the rail without the plastic insert! The insert keeps the ball bearings in while you fit the slider on. See the photos for more details on how to do this! If you lose a ball bearing or two, it'll still work but its best to keep them all in!
