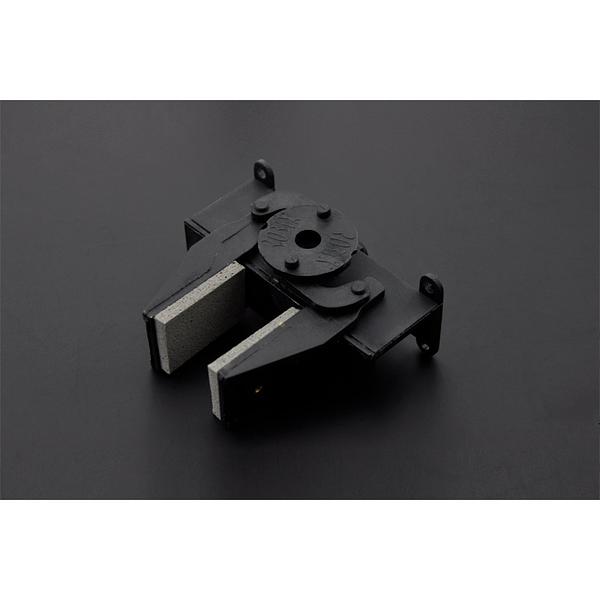

LG-NS Robot Gripper (With Servo)

$62.50

Part Number:  DF-ROB0073
Brand:  DFRobot Australia

Introduction How can your robot rule the world with an iron fist but without any claw? This robot gripper is designed for all your gripping needs. It is made from injection molded industrial ABS and comes with 2 Hitec's HS311 metal servos. Gripper opens to 1.3" and is able to rotate 180 degrees with the addition of a second servo at the rear. You can...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Introduction How can your robot rule the world with an iron fist but without any claw?

This robot gripper is designed for all your gripping needs. It is made from injection molded industrial ABS and comes with 2 Hitec's HS311 metal servos.

Gripper opens to 1.3" and is able to rotate 180 degrees with the addition of a second servo at the rear.

You can directly drive this gripper with our servo library on IO Expansion Shield V7.
Specification
  • Working Voltage:4.8-6V
  • Clamp range:0-1.3"
  • Marerial: ABS
  • Size:2.5x2.3x1"
  • Servo:
  • speed: 0.19 sec/60° at 4.8V
  • speed: 0.15 sec/60° at 6.0V
  • torque: 42.00 oz-in at 4.8V
  • torque: 51.00 oz-in at 6.0V

Documents Shipping List
  • LG-NS robot gripper     x1
  • HS-311 servos          x2
  • Screw and wahser      x4
  • Clamp cushion        x4
