LCD Keypad Shield V2.0 For Arduino [DF-DFR0374]

LCD Keypad Shield V2.0 For Arduino

LCD Keypad Shield V2.0 For Arduino [DF-DFR0374]

Price: $20.45
Fastest delivery: Tuesday, 8th February
Order before 2pm Thursday, 27th January
Available with a lead time
(27 units can dispatch between Feb 07 to Feb 10)
Need more than 0 units?
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

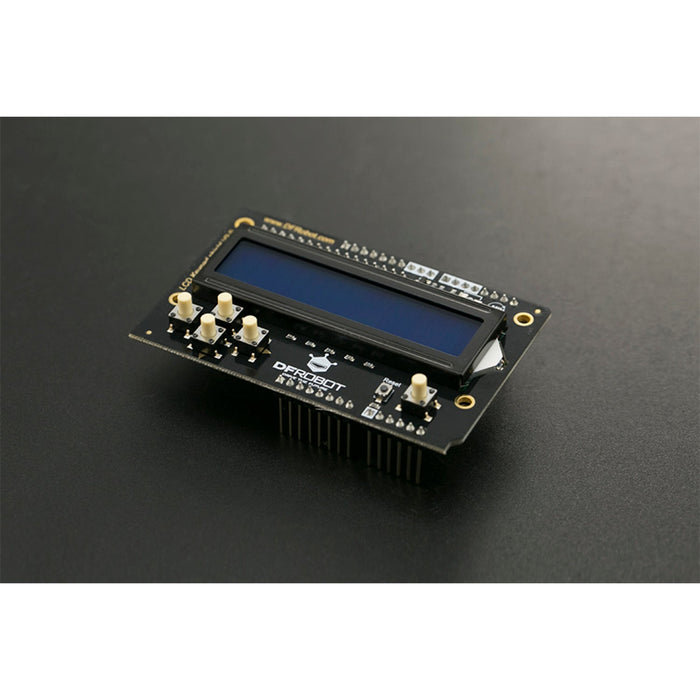

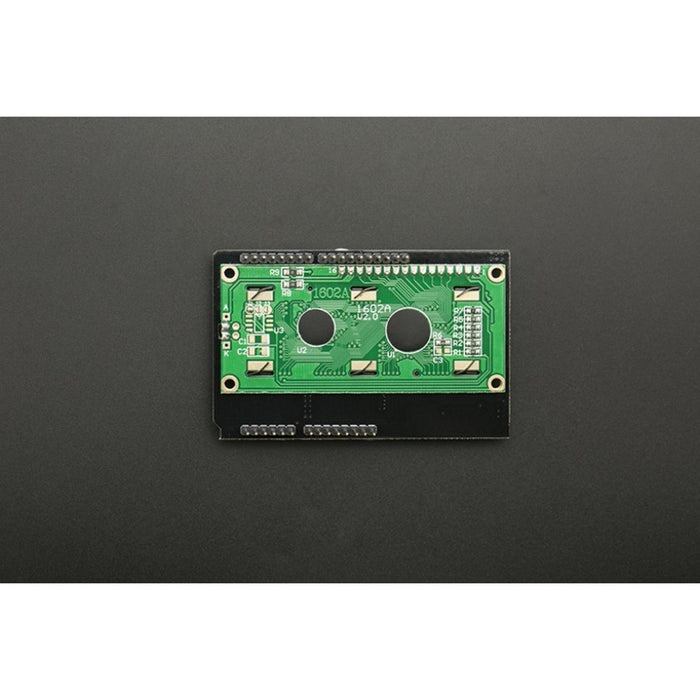

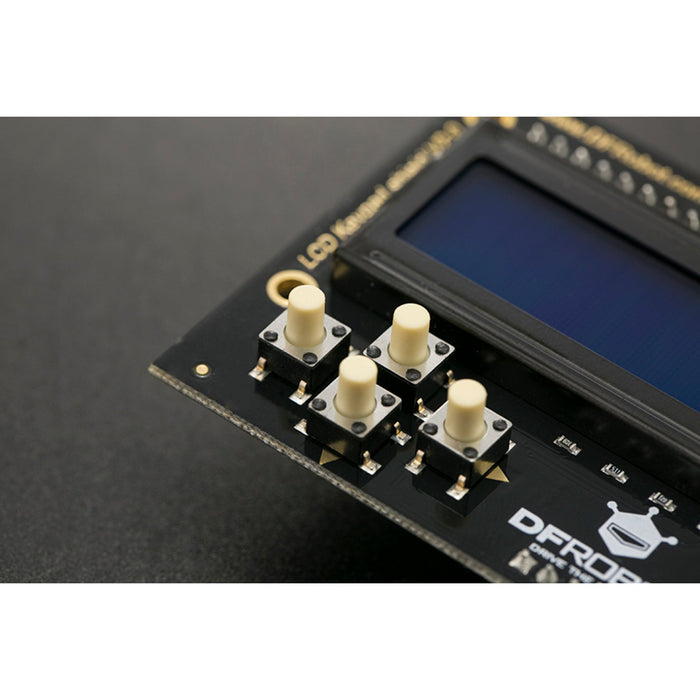

Photo of LCD Keypad Shield V2.0 For Arduino Photo of LCD Keypad Shield V2.0 For Arduino Photo of LCD Keypad Shield V2.0 For Arduino Photo of LCD Keypad Shield V2.0 For Arduino

Description

The Arduino LCD Keypad Shield V2 includes a 2x16 LCD display and 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD and Analog Pin 0 is used to read the work status of five pushbuttons. This product ensures consumer's convience especially when computer is not available. Menu selection and monitoring can be easily achieved by this product even for gaming, that means you can test or debug your project by displaying information on the LCD display. This function makes sure that the project runs well. LCD Keypad Shield V2.0 is a sepcial version based on LCD Keypad shield V1.0. APC interface and the other GPIO pins have been simplified from the board. It looks more like a small control panel. A simple Arduino library is provided to make screen driving easier. Note: It is only compatible with 5V Arduino boards, such as Arduino UNO, Arduino Leonardo and Arduino Mega.


SPECIFICATION

  • Operating Voltage: 5V
  • Drive Pin: D4~D10
  • 5 KEYS input
  • Module size: 54*84mm(2.13*3.31")
  • 1602 blue background liquid crystal (16x2)

DOCUMENTS


SHIPPING LIST

  • LCD Keypad Shield V2.0 x1
