This product is no longer available
We no longer stock JustBoom DAC HAT, but here are current alternatives in Raspberry Pi Audio Accessories.
JustBoom DAC HAT
Discontinued

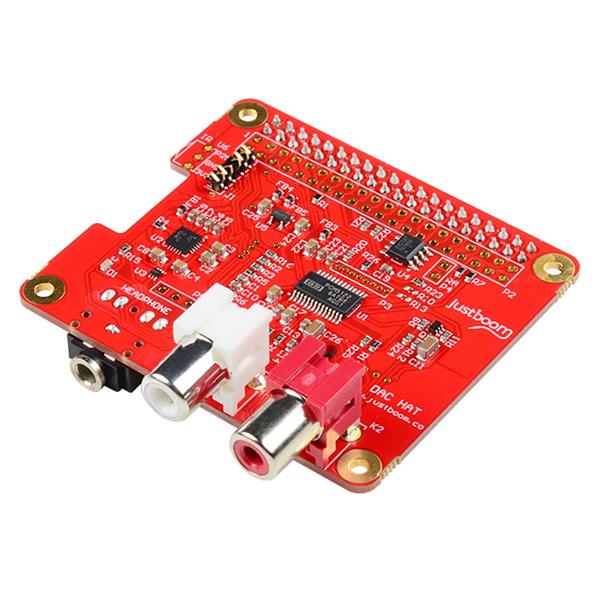

The JustBoom DAC HAT is a plug-and-play, high-resolution digital-to-analogue converter for the Raspberry Pi. Simply stack the HAT onto your Raspberry Pi and enjoy high-quality audio playback within minutes — no soldering required.
Featuring a 384 kHz / 32-bit DAC chip with hardware volume mixing and a built-in 138 mW headphone amplifier, the DAC HAT outputs line-level audio over RCA and amplified audio over a 3.5 mm jack. It uses the I2S interface for audio input, reducing CPU load compared with USB solutions, and is powered directly from the GPIO header with no extra cables needed.
Key Features
- High-Resolution Audio – 384 kHz / 32-bit DAC (Raspberry Pi supports up to 192 kHz / 32-bit output)
- Built-in Headphone Amplifier – 138 mW output via 3.5 mm jack
- Dual Outputs – Line-level RCA and headphone-amplified 3.5 mm jack
- I²S Audio Input – Lower CPU load than USB audio solutions
- Hardware & Software Volume Control – Adjustable directly from the Raspberry Pi
- Plug-and-Play – No soldering required; all mounting hardware included
- GPIO Passthrough – All 40 GPIO pins remain accessible via unpopulated extension header
- IR Receiver Included – Optional infrared receiver for remote control operation
- GPIO Powered – No additional cables or power supplies needed
Software Compatibility
- Raspbian (full driver support)
- OSMC / Volumio / Moode / RuneAudio / Max2Play
- PiCorePlayer / PiMusicBox / OpenELEC and others
Compatible Boards
- Raspberry Pi A+, B+, 2B, 3B
Package Contents
- 1× JustBoom DAC HAT
- 1× IR receiver
- Mounting hardware
