Infrared Proximity Sensor - Sharp GP2Y0A21YK
The Sharp GP2Y0A21YK is an infrared proximity sensor with an analogue voltage output that varies with distance — from 3.1 V at 10 cm to 0.4 V at 80 cm. It us...
Get notified when back in stock

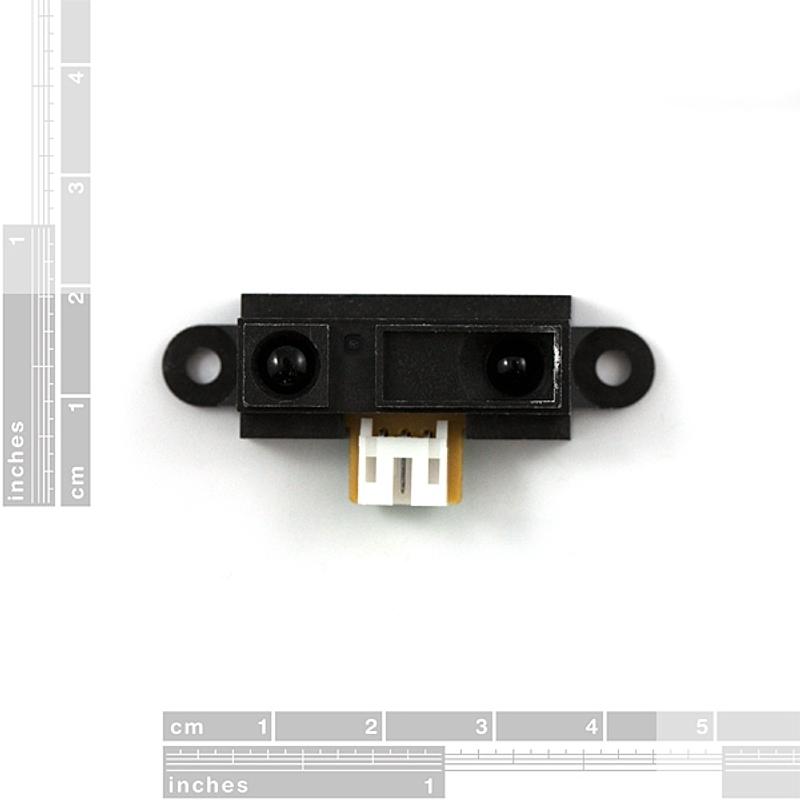

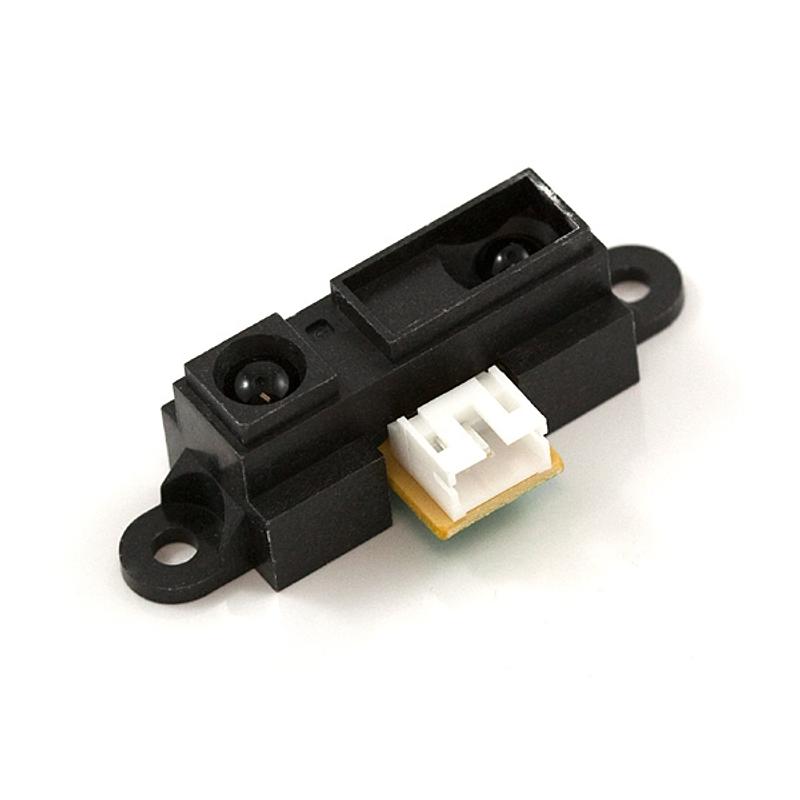

The Sharp GP2Y0A21YK is an infrared proximity sensor with an analogue voltage output that varies with distance — from 3.1 V at 10 cm to 0.4 V at 80 cm. It uses an IR emitter and position-sensitive detector to measure distance, making it unaffected by the colour or reflectivity of most objects.

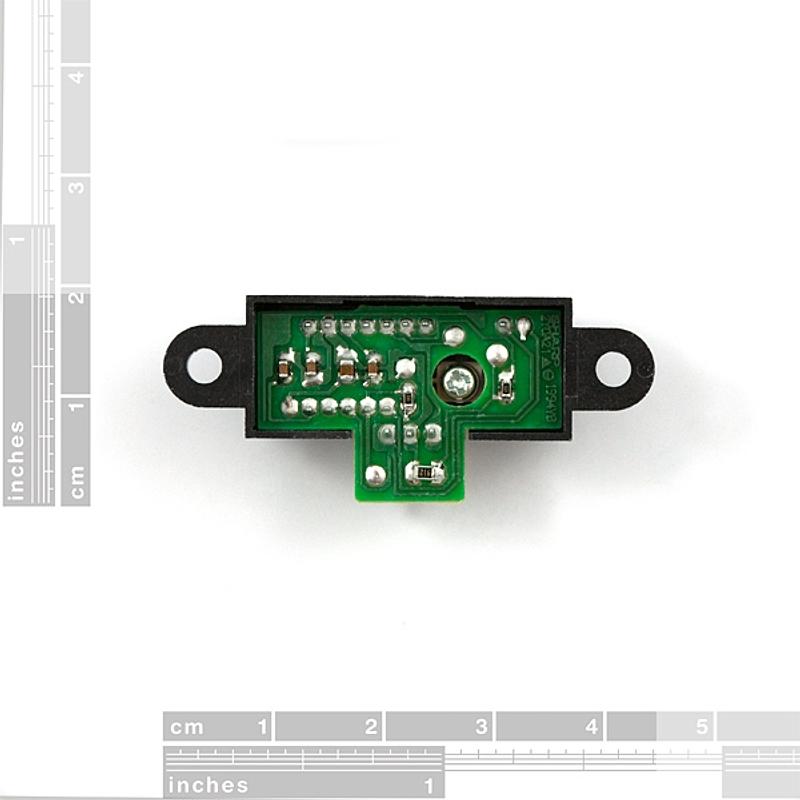

The sensor terminates in a 3-pin JST connector. Use a JST pigtail cable for easy connection, or solder wires directly to the back of the module.
Specifications
- Part Number: GP2Y0A21YK
- Detection Range: 10–80 cm
- Output: Analogue voltage (0.4–3.1 V)
- Supply Voltage: 4.5–5.5 V
- Connector: 3-pin JST
- Manufacturer: Sharp
Ideal For
- Obstacle avoidance on robots
- Distance measurement projects
- Object detection and proximity sensing
- Arduino and microcontroller projects
Jargon buster
Plain-language definitions for the technical terms used above.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
- Proximity sensor
- A sensor that detects the presence of a nearby object without physical contact, using methods such as infrared, ultrasonic, capacitive, inductive or time-of-flight. Useful ranges vary widely between types, from a few millimetres to several metres, so check a given sensor's specified range to see whether it suits close-up touch-free triggers or longer-distance detection.
