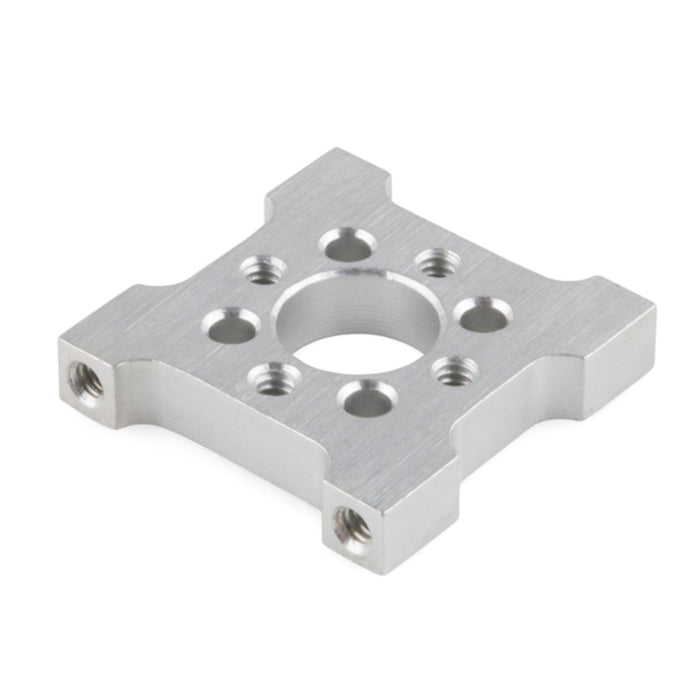

Hub - Quad D Mount (90 Degree)

$10.33

Part Number:  SF-ROB-12349
Brand:  SparkFun Australia

Quad hub mounts attach to the inside of a channel at a 90 degree angle providing you with additional attachment points for the open top of a channel. These mounts have a width of 1.32”, a thickness of 0.25”, a 0.50” bore bearing, and utilize the 0.77” hub pattern. Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Quad hub mounts attach to the inside of a channel at a 90 degree angle providing you with additional attachment points for the open top of a channel. These mounts have a width of 1.32”, a thickness of 0.25”, a 0.50” bore bearing, and utilize the 0.77” hub pattern.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

Dimensions:

  • Width - 1.32”
  • Thickness - 0.25”
  • Bore Bearing - 0.50”
  • Hub Pattern - 0.77”
