Hexapod Robot Kit

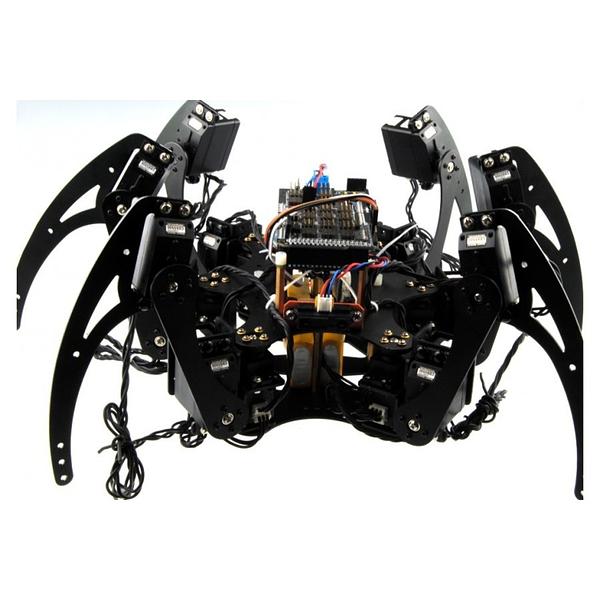

An 18 degree-of-freedom hexapod robot kit built around the Arduino Mega 2560. Each of its six legs is powered by three CDS5516 high-performance servos with 300° rotation range and over 14 kgf·cm of holding torque — enough for the hexapod to balance on just two feet.

The CDS5516 servos provide feedback on their current angle, torque, and temperature via serial interface, giving precise control and real-time diagnostics for each joint. The included Mega IO Expansion Shield provides convenient access to the Mega's 54 I/O pins and multiple serial ports for adding sensors and wireless modules.

Key Features

• 18 Degrees of Freedom – Three servos per leg for smooth, agile movement
• CDS5516 Servos – 300° range, >14 kgf·cm torque, serial feedback for angle, torque, and temperature
• Arduino Mega 2560 – 54 I/O pins with Mega IO Expansion Shield included
• Single Battery Power – Runs the entire robot from one 7.4 V battery
• Expandable Platform – Add sensors, wireless modules, and vision systems via the expansion shield

Servo Specifications

• Max Holding Torque – >14 kgf·cm
• Weight – 61 g
• Rotation Range – 300° (servo mode)
• Max Rotation Speed – 0.18 sec/60°

Optional Accessories

• XBee wireless module and joystick remote controller for remote control
• Ultrasonic or IR range sensors for obstacle avoidance

Package Contents

• 1× Hexapod robot frame kit
• 18× CDS5516 servos
• 1× Arduino Mega 2560 microcontroller board
• 1× Mega IO Expansion Shield V2.0
• 2× Servo driver boards
• 1× 7.4 V battery
• 1× Jumper wire pack (10× F/F, 230 mm)
• 6× Footstep bearings
• 25× 2 × 8 mm self-tapping screws
• 50× 2 × 5 mm self-tapping screws
• 72× M4 × 10 mm screws and nuts
• 30× M3 × 8 mm screws and nuts
• 25× M3 × 5 mm screws and nuts
• 4× M3 × 6 mm nylon screws and nuts
• 4× M3 × 50 mm hexagonal standoffs

Resources

• DFRobot Wiki – Hexapod Robot Kit
• Hexapod Instruction Manual (PDF)
• CDS5516 Servo Datasheet
• Wiring Diagram
