Header - 6-pin Female (SMD, 0.1, Right Angle)
This is a SMD 6 pin right angle female header. We realized that we have had the male version of this header available for awhile now, but never the female. N...
Get notified when back in stock

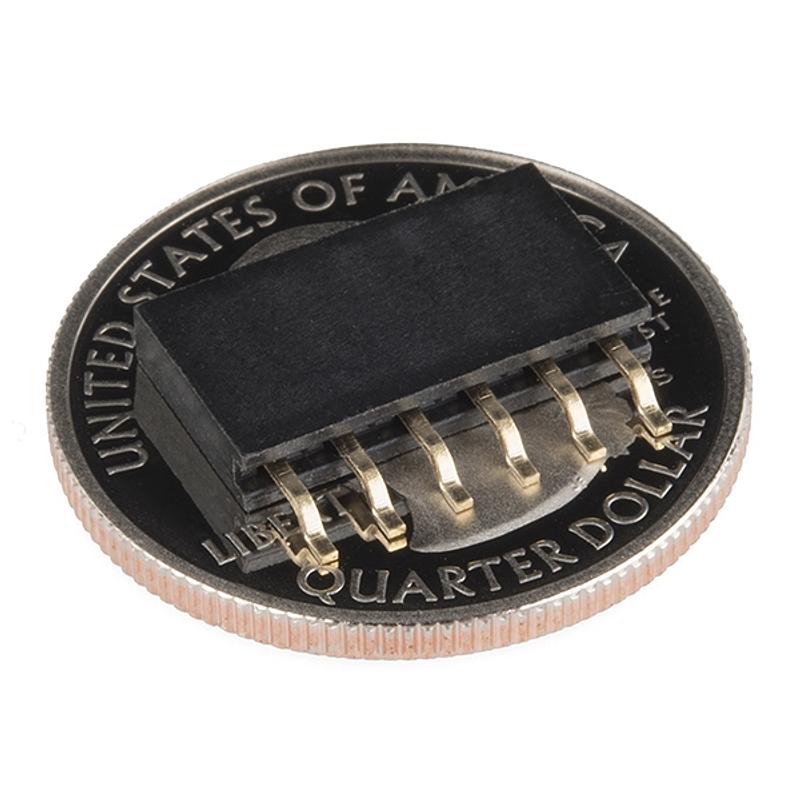

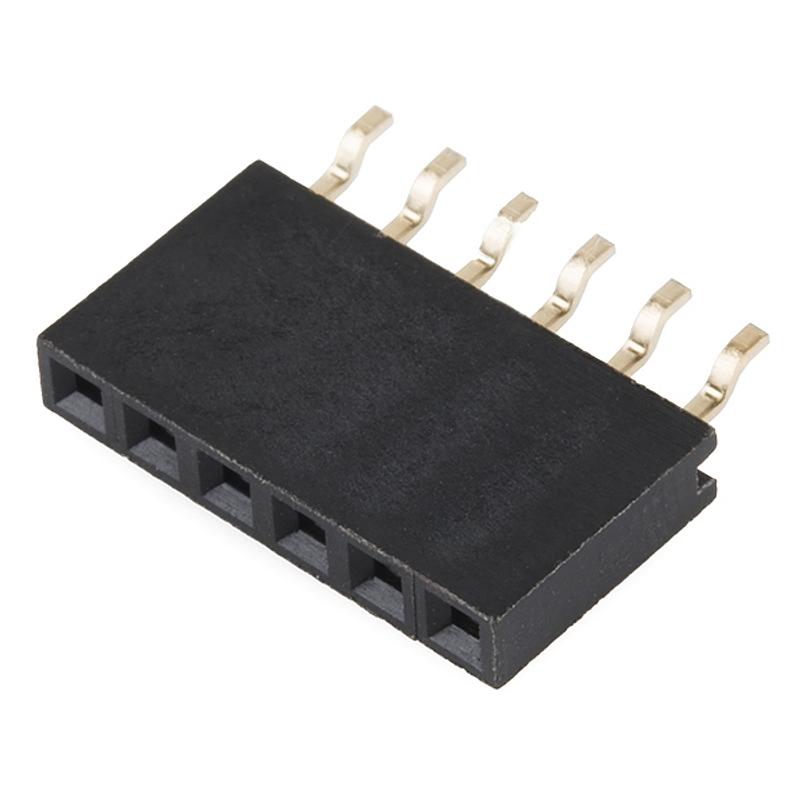

This is a SMD 6 pin right angle female header. We realized that we have had the male version of this header available for awhile now, but never the female. Now you have the ability to get both!
Pins have 0.1" spacing between rows and between pins.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
Find this product in
Brands
Right-Angle 6-Pin Female SMD Header Dimensional Drawing
Mechanical Drawings · 53.1 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 389.1 KB · Click any page to view full size
