HDMI 4 Pi - 7 Display 1280x800 (720p) IPS - HDMI/VGA/PAL/NTSC

$241.47

Part Number:  AF-1033
Brand:  Adafruit Australia

DescriptionYes, this is an adorable small HDMI television with incredibly high resolution! Adafruit tried to get the smallest possible HDMI/VGA display with high-res, high-contrast visibility. The visible display measures only 7" (17.8cm) diagonal, and the TFT comes in an enclosure with HDMI, VGA and Composite inputs. The display is very easy to use - simply connect the included 12VDC adapter to the 2.1mm center-positive DC...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

Yes, this is an adorable small HDMI television with incredibly high resolution! Adafruit tried to get the smallest possible HDMI/VGA display with high-res, high-contrast visibility. The visible display measures only 7" (17.8cm) diagonal, and the TFT comes in an enclosure with HDMI, VGA and Composite inputs. The display is very easy to use - simply connect the included 12VDC adapter to the 2.1mm center-positive DC jack, then connect a digital video source to one of the ports. Voila, a television display! There's some little buttons on the front that let you enter a menu system for adjusting brightness, color and contrast. It auto-detects which input you have and switches to that one or you can 'select' from the menu which to display. It comes with a basic stand (shown) and there are four 'mounting thread' holes in the back in a 75mmx75mm square and you can use M4 screws to attach it to an enclosure. There's also a "Camera Mount" 1/4-20 hole in the bottom so you can attach it to a camera-ready mount.

Adafruit also have a version with built in 3W speakers so you can do a full A/V setup check out that 7" display with speakers here.

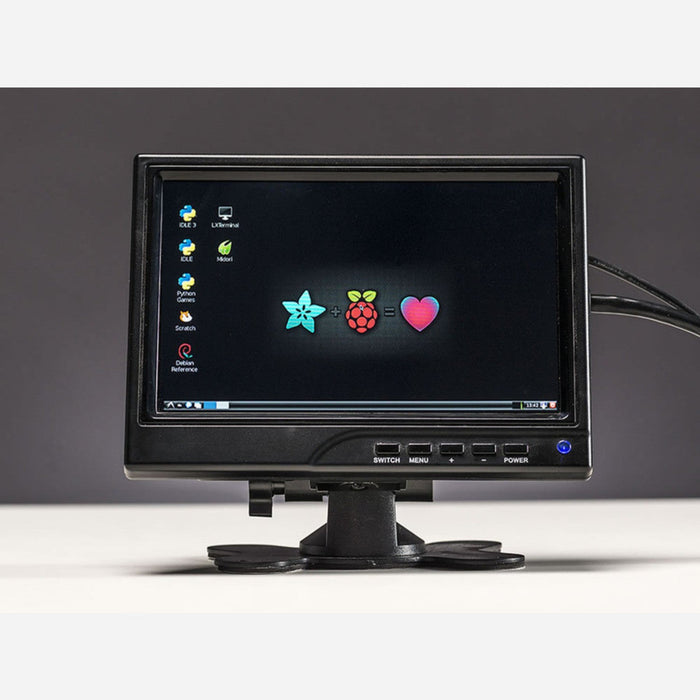

To demonstrate it, they took some photos with the display connected to a Raspberry Pi, but it will also work connected to any device with HDMI, VGA or NTSC/PAL output. It will not work with a device that only outputs DVI (without a DVI->HDMI converter) or SECAM.

For use with a Raspberry Pi they suggest editing config.txt as in the technical tab.

For use with a BeagleBone black, they found it works when plugged in, no configuration required. You may need a mouse/keyboard to keep the Bone display from going into 'sleep mode'

A 9V US-prong power adapter is included. The power supply may vary from the one shown in the photo, but it will definitely have a US 2-prong plug and will be a switching supply that can be used with 110-240VAC. Adafruit also powered it with 12V and it worked fine, and it might work at 5V.

Technical Details

  • Power with 5-24VDC
  • 700mA power draw at 12V
  • 16:10 display ratio
  • Resolution: 1200 x 800
  • Visible area: 150mm x 95mm 16:10
  • Brightness: 400cd/m2
  • Contrast: 800:1
  • Adafruit opened up one of the displays and found an HSD070PWW1 inside, they expect that all of TVs have this display or something similar
  • Auto-detects between VGA, HDMI and Composite
  • Display plastic case dimensions: 180mm x 130 x 30
  • Weight (excluding power cable): 290g/10.2oz
  • Not HDCP compatible - it cannot be used with 'secured' HDMI sources

For more information on this HDMI display, including a suggested config.txt, check out Adafruit's HDMI Display ÜBERGUIDE!
