INTRODUCTION

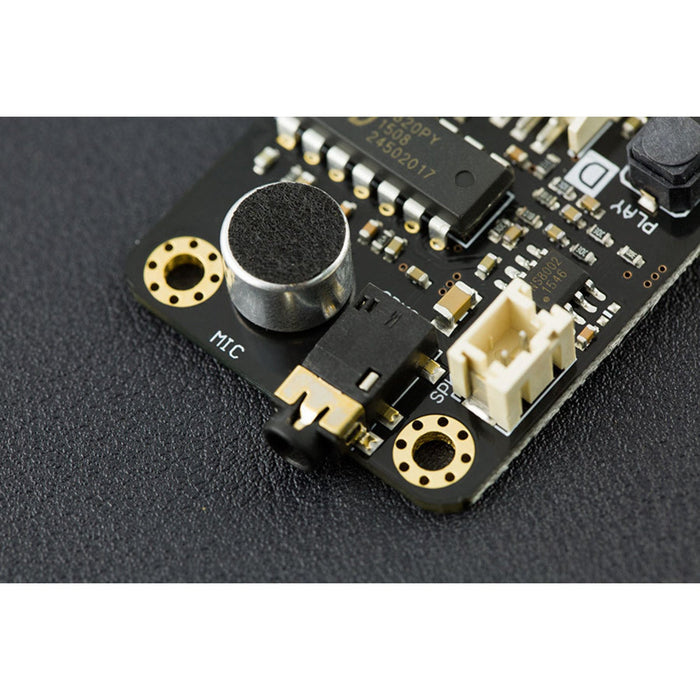

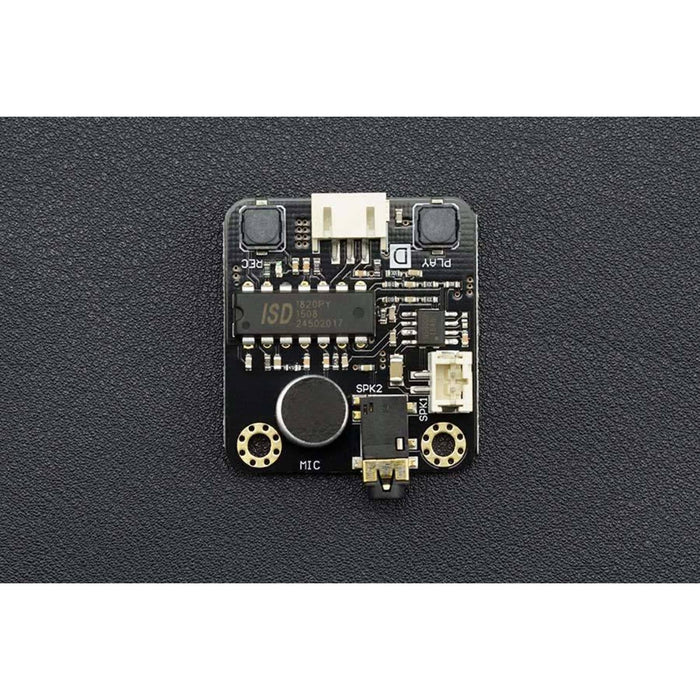

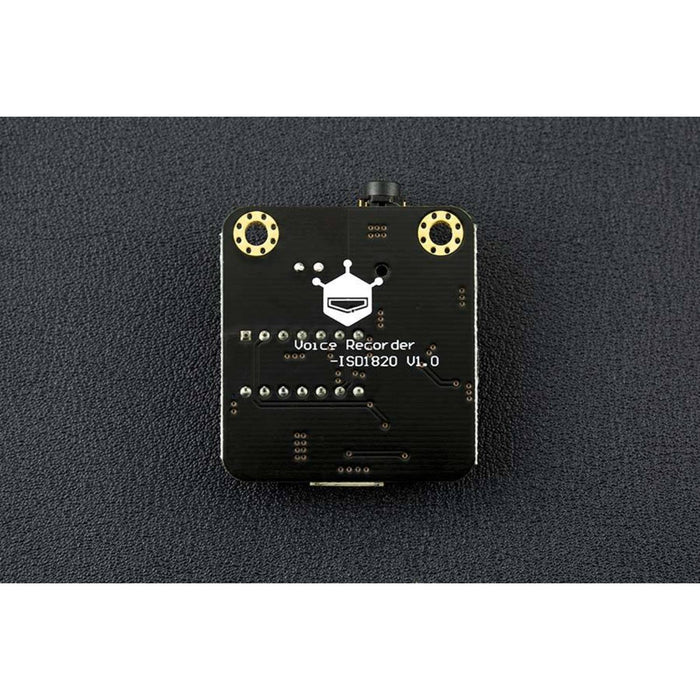

This is the latest voice recorder module with integrated record and play functions. Easily record your voice by pressing the record button, speaking and then releasing the button when finished. The module is able to playback 10 seconds in total. Connect an 8Ω 3W speaker or an external active speaker for voice output. The module also has a 3 pin digital interface so you can connect it to an Arduino compatible microcontroller as a playback trigger.

Recommend JST-2P 3W8Ω Speaker.
SPECIFICATION

  • Operating voltage: 5V
  • Recording time: 10 seconds
  • Sampling frequency: 6.4KHz
  • Repeatable recording times: 100,000
  • Dimensions: 37*35 mm/ 1.46*1.38 inches

DOCUMENTS


SHIPPING LIST

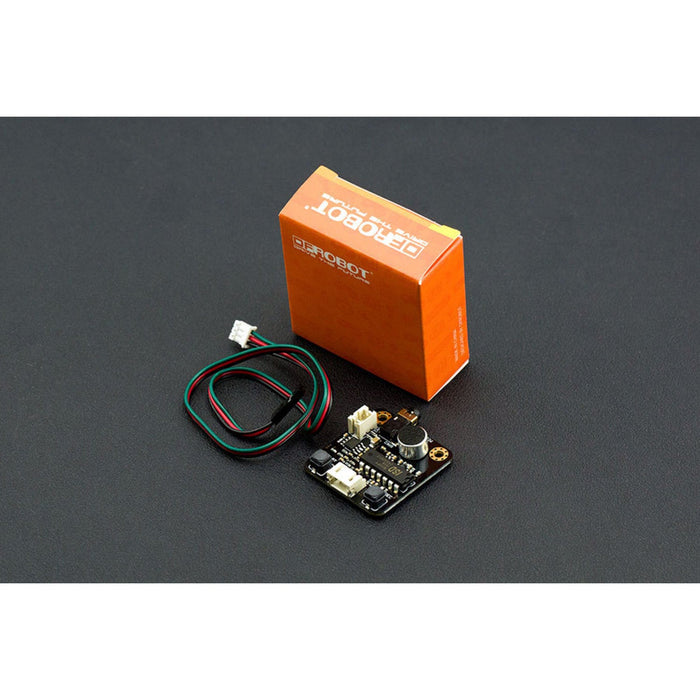

  • Voice Recorder Module x1
  • Gravity digital cable x1
