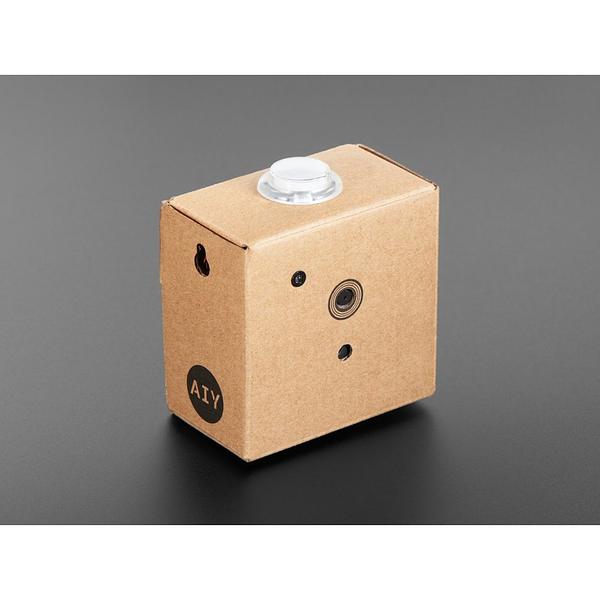

Google AIY Vision Full Kit - Includes Pi Zero WH - v1.1
29 units will be available shortly.
Google AIY Projects brings do-it-yourself artificial intelligence to your maker projects. The Google AIY Vision Kit lets you build an image recognition device that can see and identify objects, powered by TensorFlow’s machine learning models.
The kit includes all of the components needed to assemble the basic kit that works with the Google Assistant SDK as well as on-device image & vision recognition with TensorFlow using the Intel Movidius Myriad Vision Processing Unit (VPU) hardware assist.
Assembling the kit should take about one hour. This no-soldering-required, complete AIY kit is an awesome Pi Zero-powered project!
Kit includes:
Vision Bonnet Board with Movidius VPU for Raspberry Pi - fully assembled
Raspberry Pi Zero WH (Fully assembled)
Raspberry Pi Camera Board
Pi Zero Camera flat flex cable
CSI flat flex cable to connect to the camera
MicroSD card for the operating system
11mm Plastic standoffs
Privacy LED
Arcade Push Button
Button harness
Piezo buzzer
LED bezel
USB cable - A/MicroB
Tripod mounting nut
External cardboard box
Internal cardboard frame
Recommended items that are NOT included:
5V Power Supply with USB plug (use the included MicroUSB cable)
or
5V 2.5A Power supply with 2 meter cable built in
