ESP32 Thing Stackable Header Set
These headers are made to work with the SparkFun ESP32 Thing and ESP32 Power Control Shield boards. Each set of headers makes your ESP32 Thing easily stackab...
Get notified when back in stock

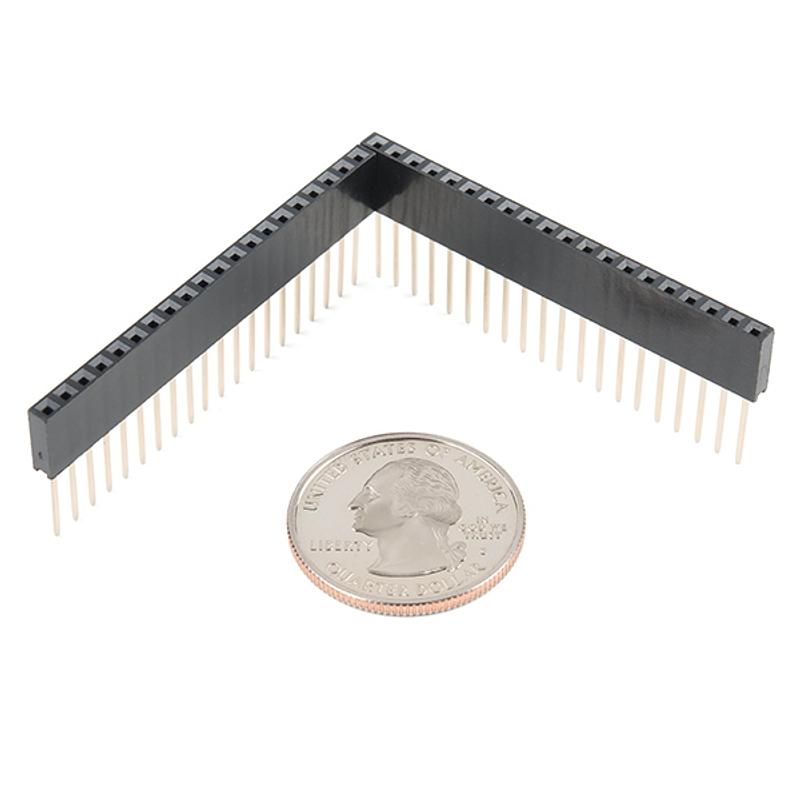

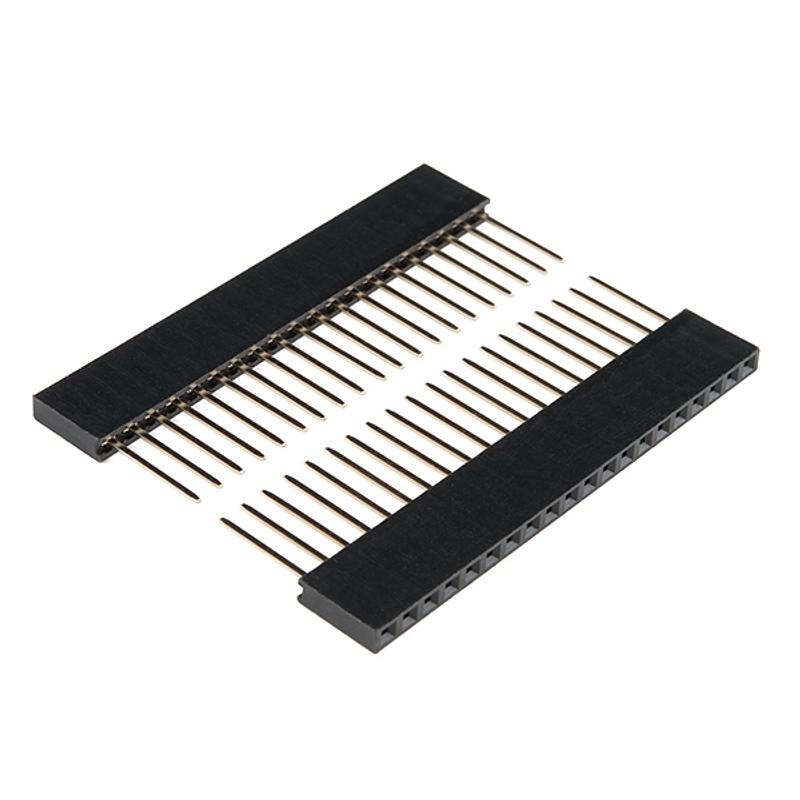

These headers are made to work with the SparkFun ESP32 Thing and ESP32 Power Control Shield boards. Each set of headers makes your ESP32 Thing easily stackable with the Power Control Shield or other applications. This set includes two 1x20 headers, enough to connect your ESP32 to anything you want!
Includes:
- 2x 20-pin Stackable Header
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- ESP32
- ESP32 is a family of low-cost microcontroller chips and modules from Espressif with built-in WiFi and Bluetooth. They support programmable firmware and over-the-air updates, and are commonly programmed with toolchains such as the Arduino core and ESP-IDF.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
Find this product in
ESP32
ESP32 Thing Stackable Header Dimensional Drawing
Mechanical Drawings · 111.6 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 393.8 KB · Click any page to view full size
