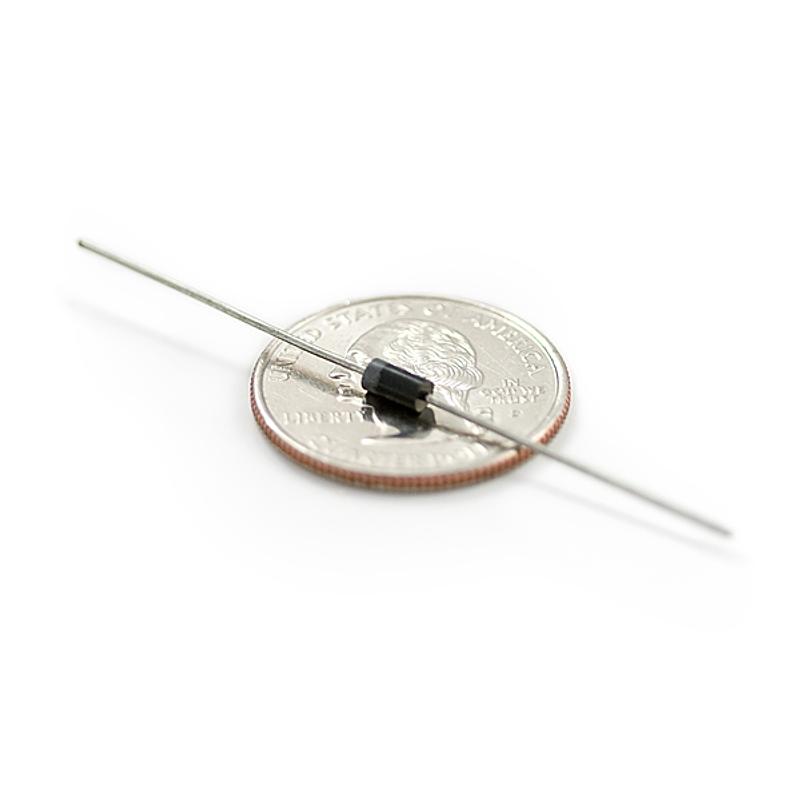

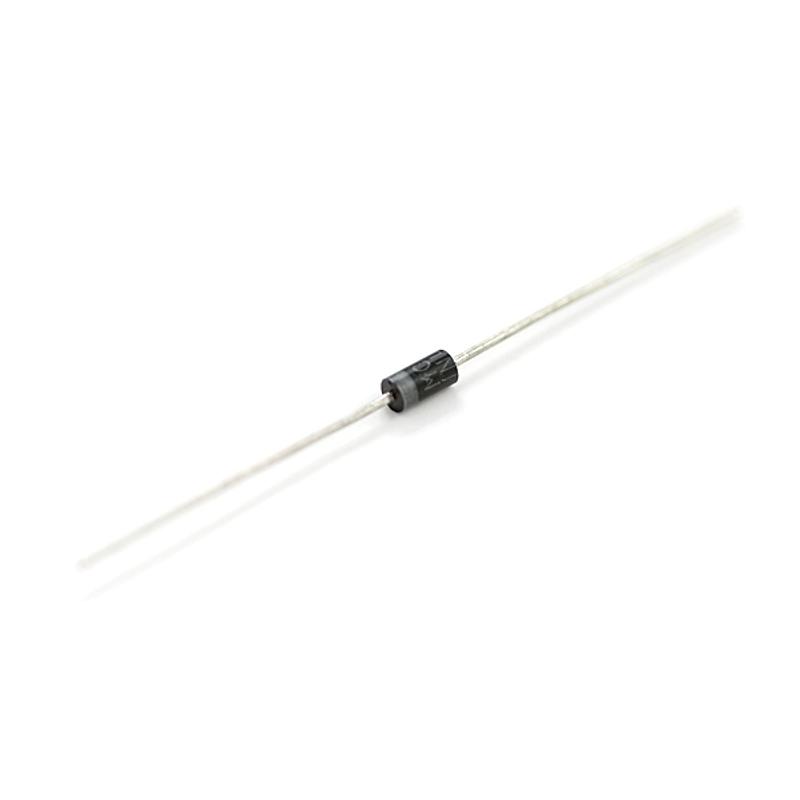

Diode Rectifier - 1A 50V
This is a simple, very common rectifier diode. Often used for reverse voltage protection, the 1N4001 is a staple for many power, DC to DC step up, and breadb...
Get notified when back in stock
This is a simple, very common rectifier diode. Often used for reverse voltage protection, the 1N4001 is a staple for many power, DC to DC step up, and breadboard projects. 1N4001 is rated for up to 1A/50V.
If you need a bunch of these, you can get good bulk discounts on Digikey, part # : 1N4001-TPMSCT-ND
Documents:Datasheet
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- rectifier diode
- A diode designed to let current flow mainly in one direction, often used to convert AC into DC or to protect circuits from reverse current. It matters because rectifier diodes are chosen for power handling rather than fast signal switching.
Find this product in
1N400x Diode Datasheet
Datasheet · 96.1 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 278.1 KB · Click any page to view full size
