DC Barrel Power Jack/Connector (SMD)
A standard SMD (surface-mount) DC barrel power jack for use with common DC wall adapters. This is the same connector size used on most Arduino boards and man...
Get notified when back in stock

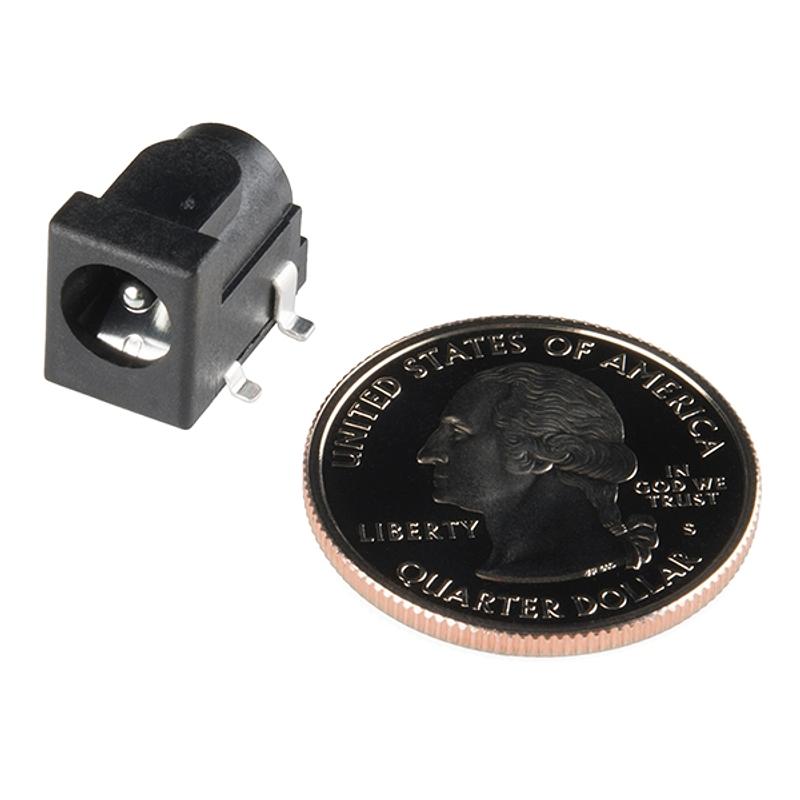

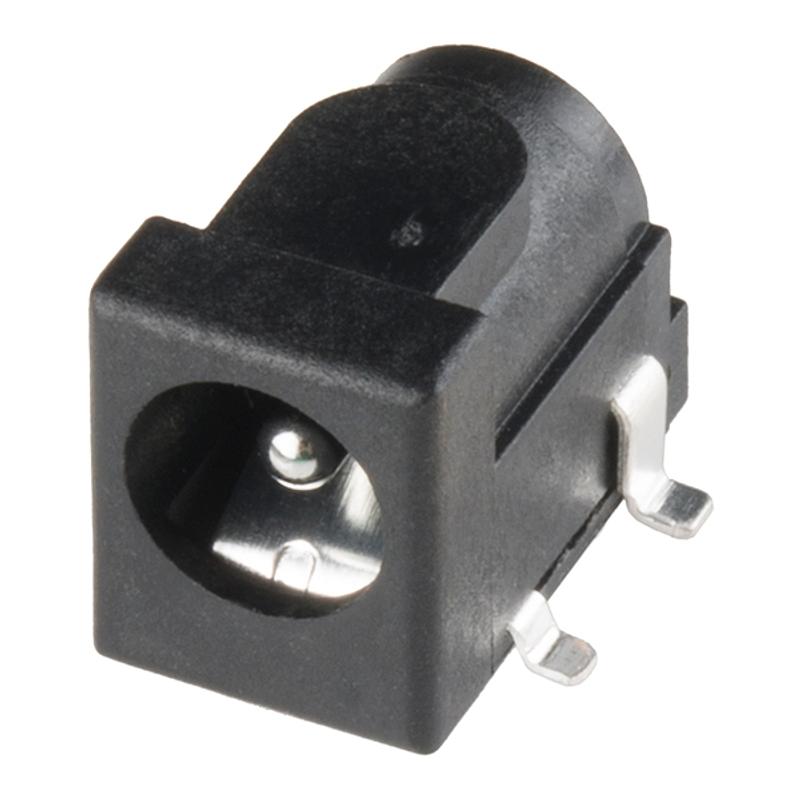

A standard SMD (surface-mount) DC barrel power jack for use with common DC wall adapters. This is the same connector size used on most Arduino boards and many other development platforms.
Key Features
- Surface-Mount (SMD) – Reflow-solderable for custom PCB designs
- Standard Size – 5.5 mm outer / 2.1 mm centre pin, compatible with common DC barrel plugs
Specifications
- Jack Outer Diameter – 5.5 mm
- Centre Pin Diameter – 2.1 mm
- Mounting – Surface mount (SMD)
Resources
Package Contents
- 1× DC barrel power jack (SMD)
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
