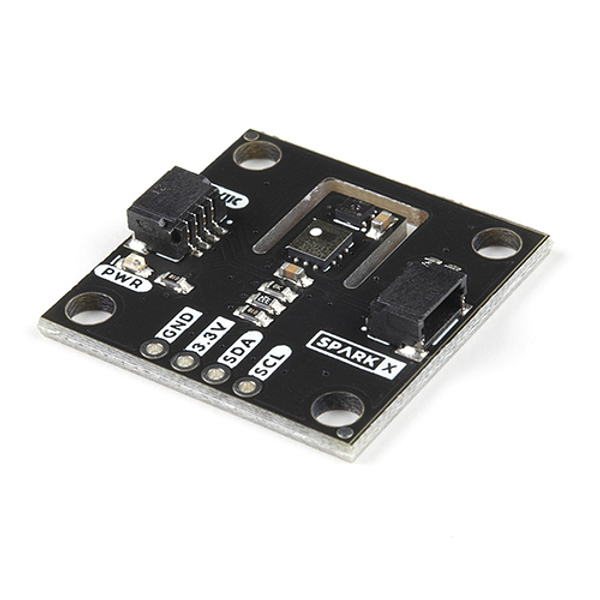

CO₂ Sensor - STC31 (Qwiic)
Discontinued
The STC31 CO₂ Sensor Breakout measures carbon dioxide concentrations from 0 to 100 vol% using Sensirion's thermal conductivity sensing technology. The board also includes a separate SHTC3 humidity and temperature sensor for humidity-compensated CO₂ measurements and improved temperature compensation. Communication is via I²C with Qwiic connectors for solderless hookup.
The STC31 is calibrated for CO₂ in nitrogen and CO₂ in air, with configurable I²C address selection via split-pad jumpers on the back of the board. The power LED and I²C pull-ups can be disabled by cutting the corresponding jumpers.
Key Features
- Sensirion STC31 – Thermal conductivity CO₂ sensor with 16-bit resolution
- Two Measurement Ranges – 0–25 vol% and 0–100 vol%
- Measurement Accuracy – 0.5 vol% + 3% (0–25%); 1 vol% + 3% (0–100%)
- Repeatability – 0.2 vol%
- Stability – 0.025 vol% / °C
- SHTC3 Humidity/Temperature Sensor – ±2% RH and ±0.2 °C for compensation
- Atmospheric Pressure Compensation – Software-configurable
- Qwiic I²C Interface – Dual connectors, configurable address (0x29, 0x2A, 0x2B, 0x2C)
Specifications
- STC31 Supply Voltage – 2.7–5.5 V (Qwiic bus operates at 3.3 V)
- SHTC3 Supply Voltage – 1.62–3.6 V
- STC31 Temperature Range – −20 °C to +85 °C
- SHTC3 Temperature Range – −40 °C to +125 °C
- SHTC3 Humidity Range – 0–100% RH
- SHTC3 I²C Address – 0x70 (non-configurable)
- Start-Up Time – 14 ms
Ideal For
- High-concentration CO₂ monitoring (fermentation, industrial processes)
- Gas mixing and blending applications
- Environmental and safety monitoring
- Laboratory and research instrumentation
Package Contents
- 1× CO₂ Sensor Breakout (STC31 + SHTC3, Qwiic)
