Channel Mount Gearbox Kit - Standard Rotation (2:1 Ratio)

This channel mount gearbox kit lets you attach a standard-size servo to Actobotics channel and tubing, creating a powered 2:1 gear reduction with up to 180° of rotation. It's ideal for building custom pan-and-tilt mechanisms, robotic arms, and other mechanical structures.

The kit features a hardened 1/2″ stainless steel output shaft supported by dual ABEC-5 precision ball bearings, capable of handling up to 200 pounds of vertical and horizontal load. The main spur gear is bolted directly to the drive hub, eliminating any possibility of slipping under load.

Key Features

• 2:1 Gear Ratio – Doubles servo torque output
• 180° Maximum Rotation – Standard rotation range
• 200 lb Load Rating – Dual ABEC-5 ball bearings on a 1/2″ stainless steel shaft
• Bolt-On Spur Gear – No-slip power transfer to the drive hub
• Actobotics Compatible – Threaded side mounts for channel and tubing attachment
• Standard Servo Size – 0.77″ hub pattern

Ideal For

• Pan-and-tilt mechanisms
• Robotic arms and grippers
• Actobotics mechanical builds
• Custom servo-driven structures

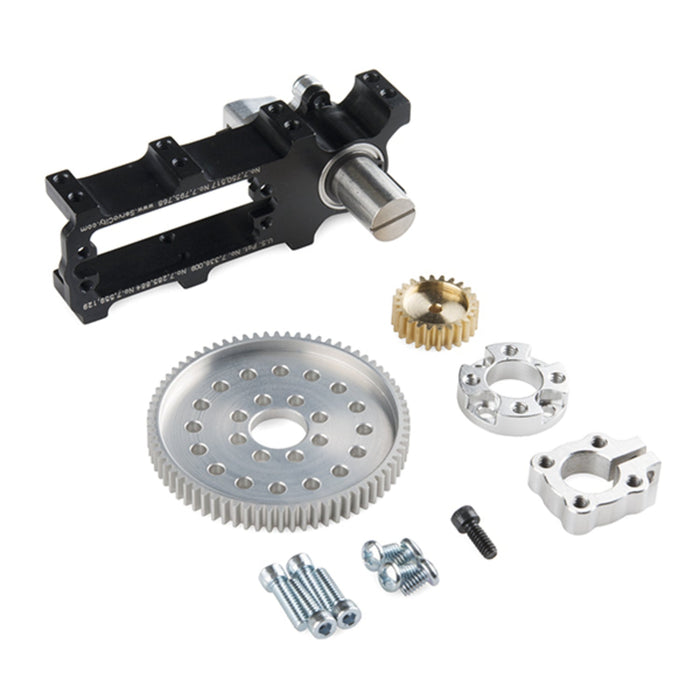

Kit Contents

• 1× Channel Mount Gear Box (180° Rotation)
• 1× Hub Mount Gear
• 1× 2:1 Servo Gear
• 1× 0.77″ × 0.77″ Servo Hub
• 1× 1/2″ Clamp Hub
• 1× 6-32 × 3/8″ Set Screw
• 4× 6-32 × 1/2″ Socket Head Screws
• 4× 6-32 × 1/4″ Phillips Head Screws
