This product is no longer available
We no longer stock Cable - 5 Pin 1mm Pitch - 50mm, but here are current alternatives in Jumpers & Wires.

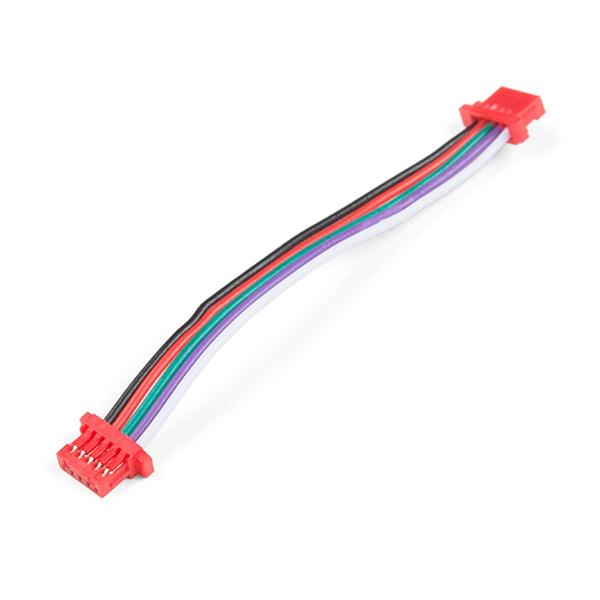

Cable - 5 Pin 1mm Pitch - 50mm
Discontinued
This 50 mm cable features 5-pin JST SHR-style connectors (1 mm pitch) on each end, providing a compact, reliable connection for boards with SH-series headers. Similar to Qwiic cables but with an extra pin, it's well-suited for 3 GPIO signals plus VCC and GND, or any 5-conductor application.
Specifications
- Connector Type – JST SH 1 mm pitch (SHR-05V-S-B)
- Pin Count – 5
- Cable Length – 50 mm
- Wire Gauge – 28 AWG
- Mating Headers – SM05B-SRSS-TB or BM05B-SRSS-TB
Ideal For
- Connecting boards with 5-pin SH-series headers
- GPIO, I2C + interrupt, or SPI signal connections
- Compact wiring in space-constrained enclosures
Package Contents
- 1× 5-Pin 1 mm Pitch Cable (50 mm)
