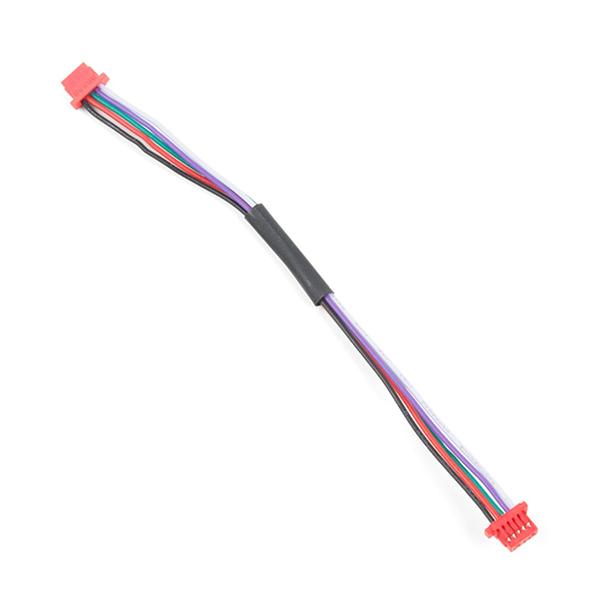

Cable - 5 Pin 1mm Pitch - 100mm
This is a 5 wire cable with a SHR style (1mm pitch) connector on each end. These are very similar to our Qwiic connectors and cables but are 5-pin. They make excellent cables for 3 GPIOs plus VCC and GND or just a 5 conductor cable.
- Cable Length: 100mm
- Wire Gauge: 28AWG
- Connector part number: SHR-05V-S-B
- Cable plugs into part number: SM05B-SRSS-TB or BM05B-SRSS-TB
The Cable - 5 Pin 1mm Pitch - 100mm appears in the following collections:
SKU SF-CAB-14990
