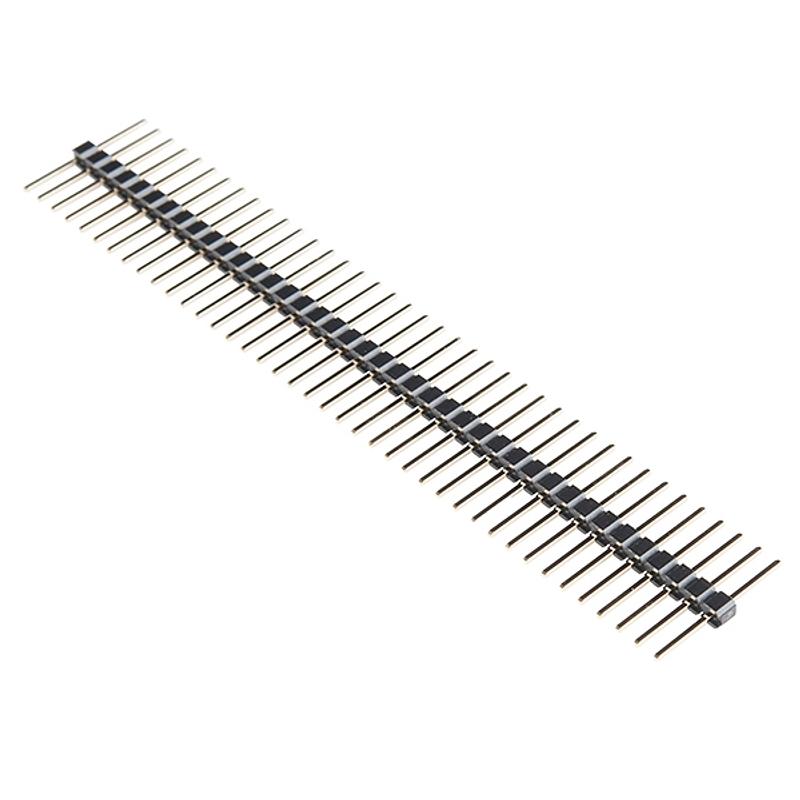

Break Away Headers - 40-pin Male (Long Centered, PTH, 0.1)
This is a row of 40 break away headers spaced 0.1" apart with long pins on both sides. This header is especially useful when you need to connect a PCB to ...
Get notified when back in stock
This is a row of 40 break away headers spaced 0.1" apart with long pins on both sides. This header is especially useful when you need to connect a PCB to a solderless breadboard. Each header can be broken apart to your preference to fit custom PCBs or general custom headers.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- solderless breadboard
- A reusable board with rows of internally connected holes for building circuits by pushing in components and jumper wires, with no soldering required. It lets you prototype and rewire a circuit quickly and reversibly before committing to a permanent, soldered build.
