Bone Conduction Kit [DF-KIT0126]

Bone Conduction Kit

Bone Conduction Kit [DF-KIT0126]

Price: $47.81
Fastest delivery: Thursday, 9th December
Order before 2pm Monday, 29th November
Available with a lead time
(19 units can dispatch between Dec 08 to Dec 13)
Need more than 0 units?
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

Photo of Bone Conduction Kit Photo of Bone Conduction Kit Photo of Bone Conduction Kit Photo of Bone Conduction Kit Photo of Bone Conduction Kit Photo of Bone Conduction Kit Photo of Bone Conduction Kit

Description

Bone conduction is a way of sound transmission. The sound is converted into different frequencies of mechanical vibration, and transmitted through human skull, bone labyrinth, inner ear lymphatic transmission, helix, auditory nerve, auditory center.


Bone conduction headphones

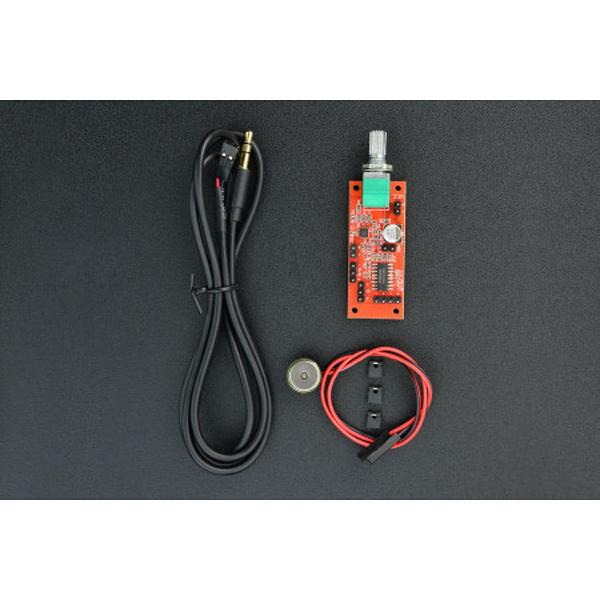

This kit is composed by a bone conduction speaker, a speaker driver board and other kinds of accessories. This kit is intended to help understand the principles of bone conduction technology, making hearing aids or bone conduction headphones.
The speaker driver board is designed based on MAX9814 microphone amplifier and PAM8406 amplifier, high sensitivity, suitable for 3.6v-4.2v lithium battery power supply. It comes with a potentiometer which has power switch function, easy to control.





Components Description Volume Switch   Power Input 3.0~5.5V AGC Switch Plugged: AGC OFF  Unplugged: AGC ON Audio Input Audio Input  Audio Output Audio Output (L/R) Gain

GAIN = VDD, Gain = 40dB;

GAIN = GND, Gain = 50dB;

GAIN = Vacant, Gain = 60dB。

A/R

Activate/Release ratio, Control the AGC activate/release time ratio:

A/R = GND: Activate/Release ratio = 1:500

A/R = VDD: Activate/Release ratio = 1:2000

A/R = Vacant: Activate/Release ratio = 1:4000





SPECIFICATION







  • Operating Voltage: DC 3.0-5.5v
  • Board Wiring Pitch: 2.54mm
  • Phone Cable: 100cm
  • Speaker Cable: 30cm
  • Headphone Size: 13mm (D) * 5mm (H)
  • Board Dimension: 50 * 20 mm/1.97*0.79 inches
  • Weight: 36g
