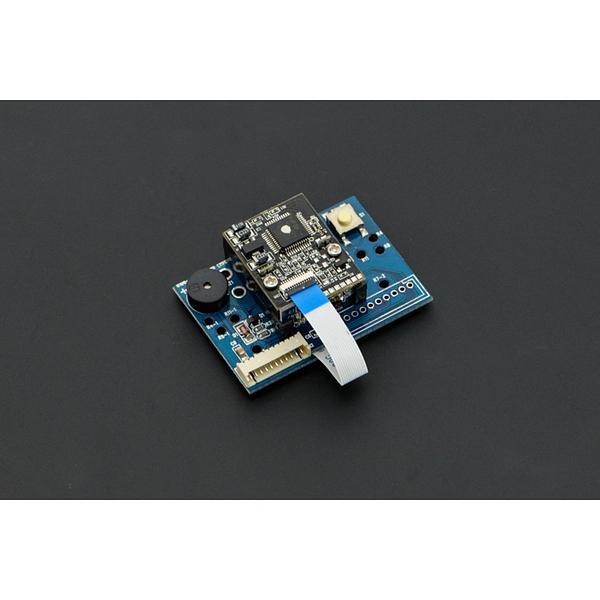

Barcode Reader/Scanner Module - CCD Camera

This Barcode Reader/Scanner Module with CCD Camera is a perfect choice for your OEM design. It brings the benefits of barcode scanning to all types of OEM devices. You will be able to use this cutting-edge scanning technology in projects such as kiosks, medical instruments, diagnostic equipment, lottery machines, vending machines ... to name but a few.

This Barcode Reader/Scanner Module has been designed to provide highest scanning performance in the smallest package possible. For added versatility, allowing for fast, cost-effective interchangeablity when upgrading or modifying your OEM design for dedicated applications.

It uses a compact, long range CCD barcode scanning module with highly sensitive liner image sensor and build in auto-sense function, which can be used in your project to decode nearly any kind of 1D(striped) barcode. Designed with the industrial standard size, mounting options and output to facilitate integration into various applications, this barcode scanner is ideal for integration into data terminals and other small devices. Its unique open system architecture also allows it to accept third party and custom plug-ins, giving the virtually unlimited application flexibility.


  • Light Source: Visible Red light 632nm LED
  • Sensor: Linear CCD Sensor
  • Reading Indicator: Beeper
  • Output Voltage: -9V~+9V
  • Stand-by Current: 50mA
  • Working Current: 150mA
  • Interface: RS232
  • Working Frequency: 8MHz
  • Working Temperature: 0°C ~ 50°C (32 oF to 122 oF)
  • Storage Temperature: -20°C to 70°C (-4 oF to 158 oF)
  • Detecting Angle(Test Conditions : Code 39, 10mil/0.25mm,PCS90%): Pitch Angle 5°~60° (±5°)
  • Reading Distance: 500mm@20mil/0.5mm, PCS90%
  • Scan Rate: 100 scans/sec ±10%
  • Size: 46mm*32.5mm*11.5mm(1.81*1.28*0.45")
  • Weight: 80g



  • Barcode Reader/Scanner Module-CCD Camera x1
  • RS232 female interface cablex1
