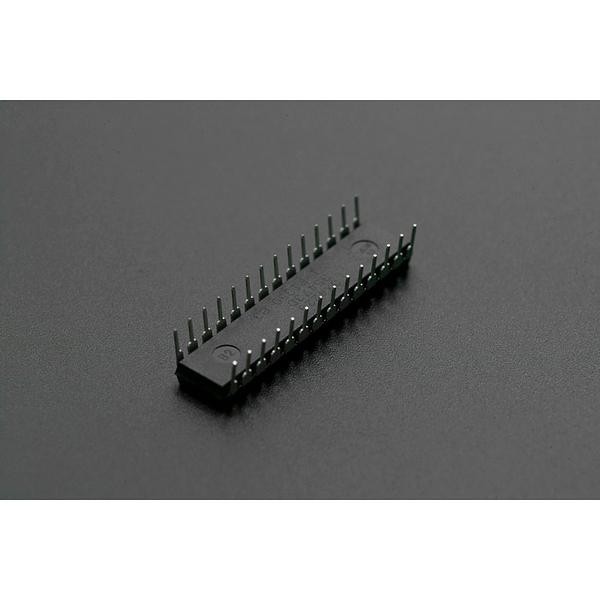

ATmega328 chip with Arduino UNO Bootloader

$11.00

Part Number:  DF-DFR0113
Brand:  DFRobot Australia

Introduction The name says it all on this one. An ATmega328 in DIP package, pre-loaded with the Arduino UNO (16MHz) Bootloader. This will allow you to use Arduino code in your custom embedded project without having to use an actual Arduino board. To get this chip working with Arduino IDE, you will need an external 16MHz crystal or resonator, a 5V supply, and a serial...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Introduction

The name says it all on this one. An ATmega328 in DIP package, pre-loaded with the Arduino UNO (16MHz) Bootloader. This will allow you to use Arduino code in your custom embedded project without having to use an actual Arduino board.

To get this chip working with Arduino IDE, you will need an external 16MHz crystal or resonator, a 5V supply, and a serial connection. If you are not comfortable doing this, we recommend purchasing the Arduino Duemilanove board that has all of these built into the board.

Atmel's ATMega328 8-Bit Processor in 28 pin DIP package. It's like the ATmega168, with double the flash space. 32K of program space. 23 I/O lines, 6 of which are channels for the 10-bit ADC. Runs up to 20MHz with external crystal. Package can be  programmed in circuit. 1.8V to 5V operating voltage!


Documents
Shipping List
  • ATmega328 chip with Arduino UNO Bootloader    x1
