Arduino Compatible Motor Servo Controller Module
All Products
New Arrivals
Arduino
Robotics & Motion
Motors (DC, stepper, servo)
Motor Drivers and Controllers
Arduino Shields
Robotics
Prototyping & Wiring
$15.17
|
Out of stock
This versatile motor and servo controller shield for Arduino drives up to 4 bidirectional DC motors or 2 stepper motors, plus 2 servos — all from a single bo...
Estimated Delivery
Arrives
Disclaimer
Secure checkout

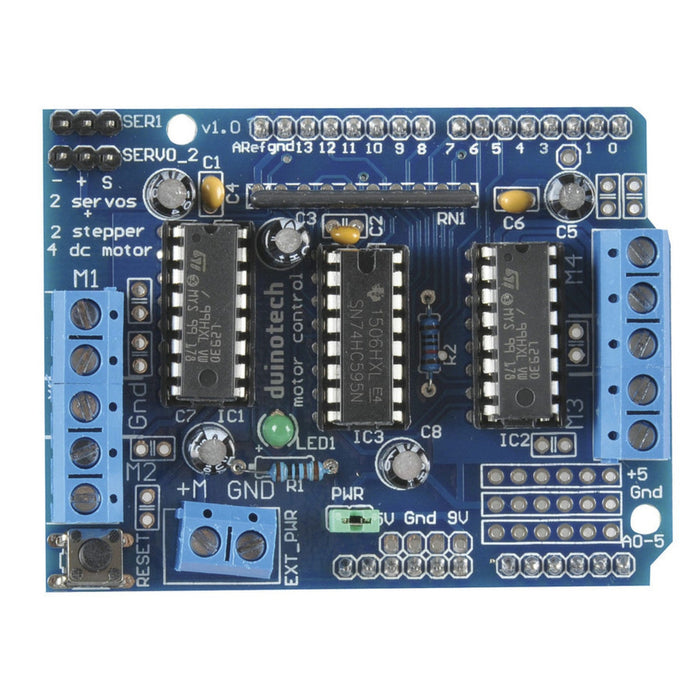

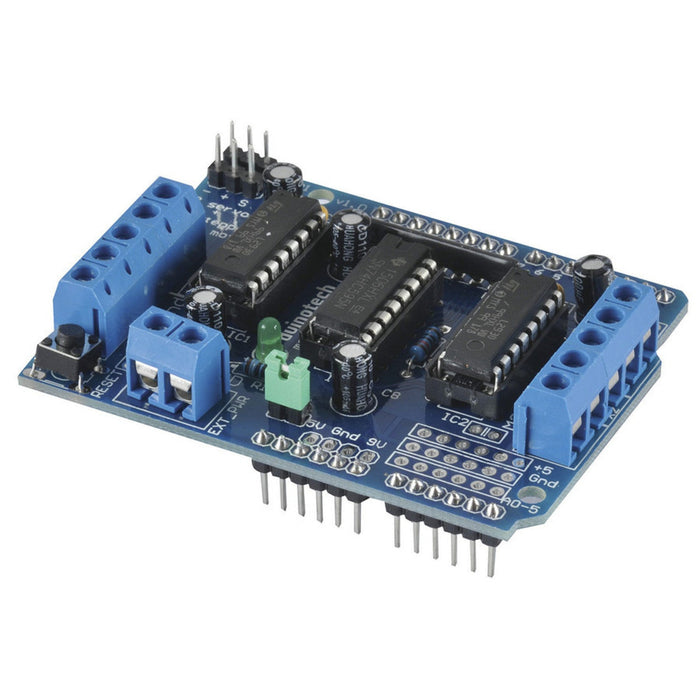

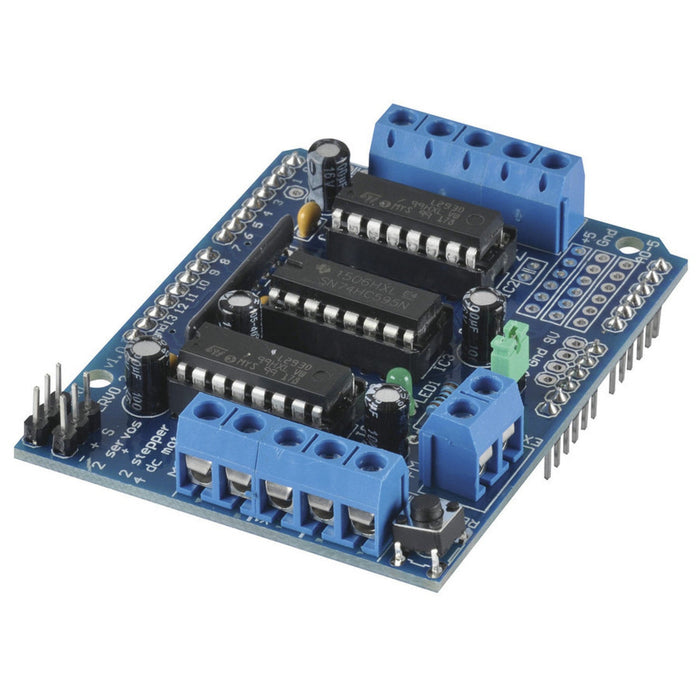

This versatile motor and servo controller shield for Arduino drives up to 4 bidirectional DC motors or 2 stepper motors, plus 2 servos — all from a single board. The 4 onboard H-bridges provide 0.6A per channel (1.2A peak) with thermal protection, and the dedicated servo ports use the Arduino's high-resolution timer for jitter-free operation.
Key Features
- 4 H-Bridge Motor Drivers – 0.6A continuous (1.2A peak) per bridge with thermal protection
- 4 DC Motors or 2 Steppers – Individual 8-bit speed control for DC motors; single, two-phase, or interleaved stepping for steppers
- 2 Servo Ports – Jitter-free operation using dedicated high-resolution timer
- External Power Input – 5–16V via terminal block for motor power
- Arduino Shield Form Factor – Stacks directly onto Arduino Uno and compatible boards
Specifications
- Motor Channels: 4× DC motor (bidirectional) or 2× stepper motor
- Servo Channels: 2× 5V servo
- Current per H-Bridge: 0.6A continuous, 1.2A peak
- Motor Supply Voltage: 5–16V
- Dimensions: 70×53×20mm
Ideal For
- Robotics projects requiring multiple motor types
- CNC and stepper motor control
- Mobile robot platforms with DC drive motors
- Pan-and-tilt servo mechanisms with motor-driven bases
Package Contents

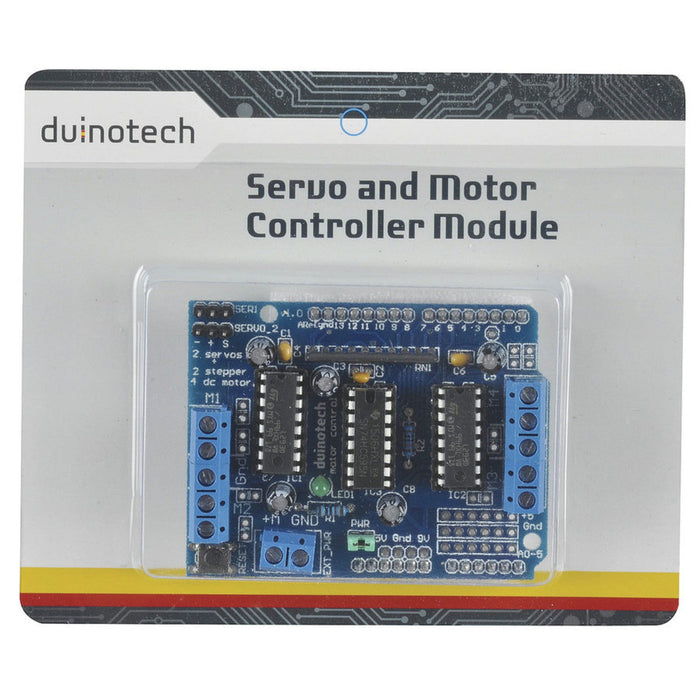

- 1× Motor/servo controller shield
Jargon buster
Plain-language definitions for the technical terms used above.
- servo
- A servo is a motor with built-in position control, usually told to move to a specific angle by a control signal. It matters when you need repeatable movement, such as steering, arms, flaps, or linkages, rather than continuous spinning.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
- Terminal block
- A connector used to join wires together in a neat, removable, or serviceable way. For this product, it helps split one power input into several outputs without soldering.
