APC802 Radio Communication Module (2800 meters)

$185.42

Part Number:  DF-TEL0030
Brand:  DFRobot Australia

Introduction The APC802 radio module provides a simple and economic solution to wireless data communications. The employment of an embedded high speed microprocessor and high performance IC creates a transparent UART/TTL interface, and elminates any need for packetizing and data encoding. It is a updated version of APC220 which provides up to 2800 meters communication ranger (line is sight). Also, it supports RS232,TTL, RS485 interface....
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)
Introduction The APC802 radio module provides a simple and economic solution to wireless data communications. The employment of an embedded high speed microprocessor and high performance IC creates a transparent UART/TTL interface, and elminates any need for packetizing and data encoding. It is a updated version of APC220 which provides up to 2800 meters communication ranger (line is sight). Also, it supports RS232,TTL, RS485 interface. Specification
  • Outdoor line-of-sight range up to 2800meters (9600bps)
  • Frequency range 418-455MHz or 470-510MHz
  • 0.2MHz channel spacing
  • Output power:500mW(adjustable)
  • One interface of TTL,RS232,RS485
  • Outstanding receiver sensitivity -117dBm@9600bps
  • High efficiency forward error correction with interleaving encoding
  • GFSK modulation
  • Main parameters can be changed by APPCON RF module software
  • 2*256Bytes double data buffer
  • Power supply with voltage +4.7-6.5V
  • Power consumption:RX current:35mA,Tx current :400mA
  • Operating temperature:-30℃to85℃
  • Size:50*31.9*7.0(mm)

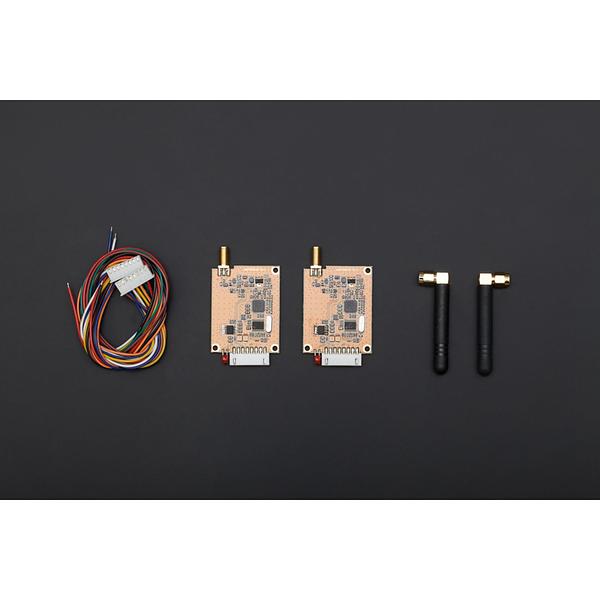

Documents Shipping List
  • APC802 Module x2
  • Cables x2
  • Antenna x2
