Analog to Digital Converter - MCP3002
The MCP3002 is a 10-bit analog-to-digital converter (ADC) with a simple SPI interface, available in a breadboard-friendly 8-pin DIP package. Use it to add an...
Get notified when back in stock

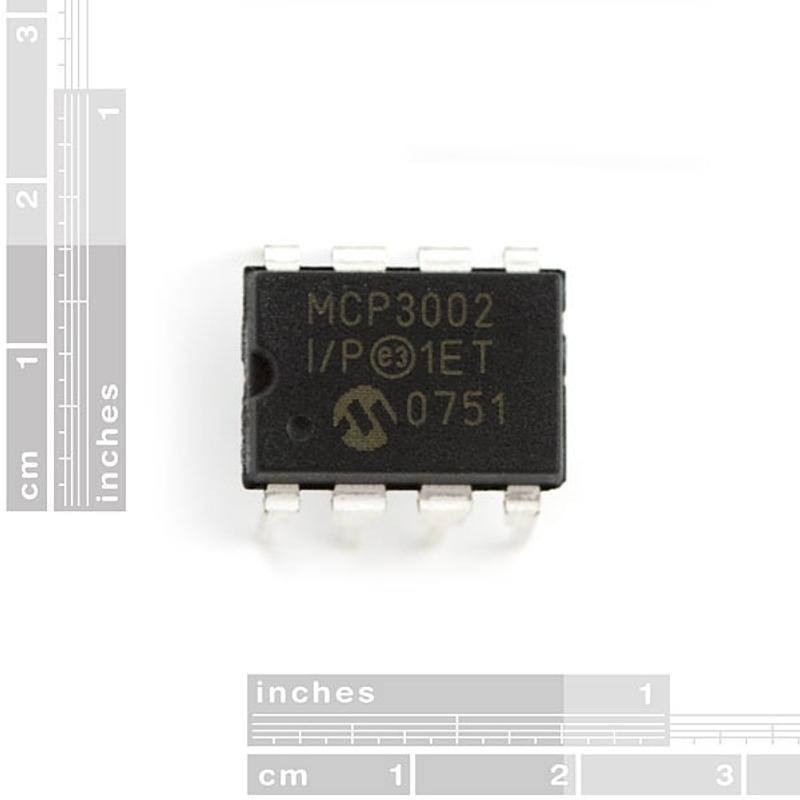

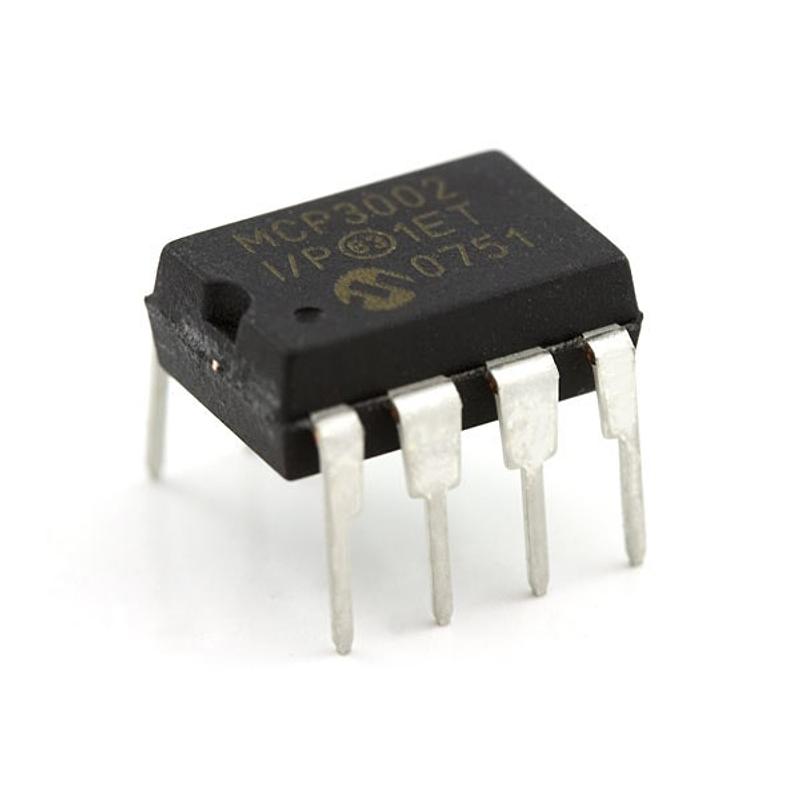

The MCP3002 is a 10-bit analog-to-digital converter (ADC) with a simple SPI interface, available in a breadboard-friendly 8-pin DIP package. Use it to add analog input capability to microcontrollers that lack an ADC, or to expand the number of available analog channels on your project.
Key Features
- 10-Bit Resolution – 1024 discrete levels for precise analog measurement
- SPI Interface – Simple 3-wire communication with any microcontroller
- 2 Input Channels – Read two analog signals independently
- Wide Supply Range – 2.7V to 5.5V operation
- High Sample Rate – Up to 75,000 samples per second
- Low Power Shutdown – Power-saving mode when not in use
- DIP Package – 8-pin DIP, breadboard and perfboard friendly
Specifications
- IC – Microchip MCP3002
- Resolution – 10-bit
- Channels – 2
- Interface – SPI (3-wire)
- Supply Voltage – 2.7V to 5.5V
- Sample Rate – Up to 75 ksps
- Package – 8-pin DIP
Ideal For
- Adding ADC capability to digital-only microcontrollers
- Expanding analog inputs on Arduino or Raspberry Pi
- Sensor data acquisition projects
- Breadboard prototyping
Package Contents
- 1× MCP3002 10-Bit ADC (8-pin DIP)
