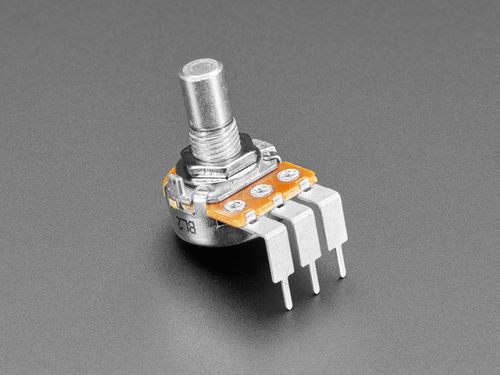

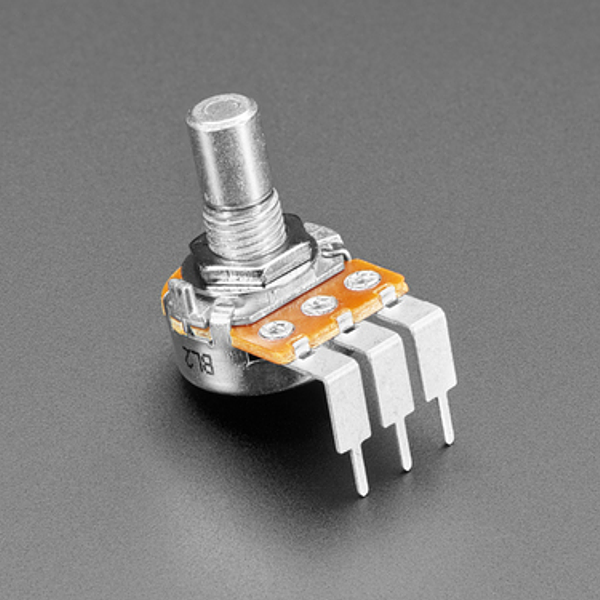

Alpha Single-Gang 16mm Right-angle PC Mount - 10K Linear

An Alpha 10K linear potentiometer with right-angle PC mount pins spaced at 0.2" — perfect for plugging directly into a breadboard or perfboard during prototyping. When you're ready for a permanent build, mount it to a panel using the included washer and hex nut.

Key Features

• 10K Ohm Linear Taper – Smooth, consistent rotation with no loose play
• Breadboard-Friendly – Right-angle pins at 0.2" spacing plug directly into breadboards and perfboards
• Panel Mountable – Includes washer and hex nut for permanent installation in project enclosures
• Round 6mm Shaft – Nominally 6mm diameter (approx. 6.3mm measured), compatible with standard knobs
• Alpha Brand – Known for reliability and consistency in potentiometers

Specifications

• Resistance: 10K ohm
• Taper: Linear (B)
• Body Size: 16mm single-gang
• Mount Type: Right-angle PC mount
• Pin Spacing: 0.2" (5.08mm)
• Shaft: Round, ~6mm diameter

Ideal For

• Breadboard prototyping with analogue input
• Volume, brightness, and speed controls
• Arduino and microcontroller analogue input projects
• Panel-mounted controls in project enclosures

Package Contents

• 1× Alpha 10K linear potentiometer (16mm, right-angle PC mount)
• 1× Washer
• 1× Hex nut
