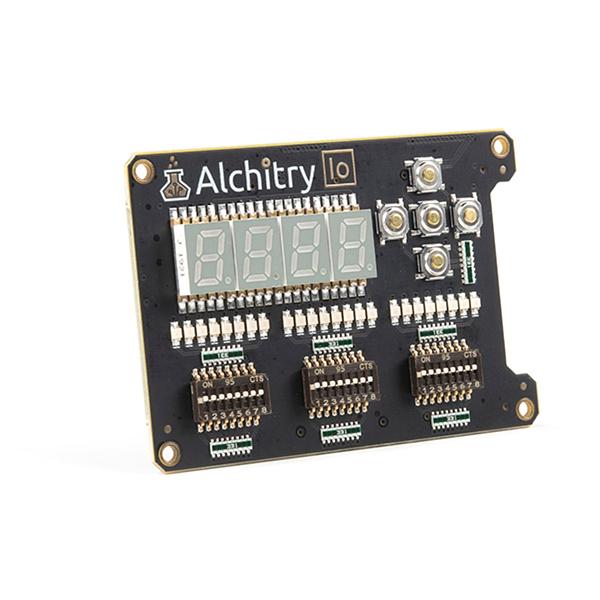

Alchitry Io Element Board

The Alchitry Io is an Element board packed with input and output peripherals for learning FPGA development. It features 7-segment displays, push buttons, LEDs, and DIP switches — perfect for working through beginner FPGA tutorials and understanding digital logic fundamentals.

The Io Element connects to the underside of your Alchitry Au or Alchitry Cu board via four bottom-mounted connectors.

Key Features

• 4× 7-Segment LED Displays – For numeric output
• 5× Momentary Push Buttons – User input
• 24× Basic LEDs – Visual output indicators
• 24× DIP Switches – Binary input switches
• Compatible – Works with Alchitry Au, Au+, and Cu boards

Ideal For

• Beginner FPGA tutorials and exercises
• Learning digital logic and combinational circuits
• Testing and debugging FPGA designs

Package Contents

• 1× Alchitry Io Element Board
