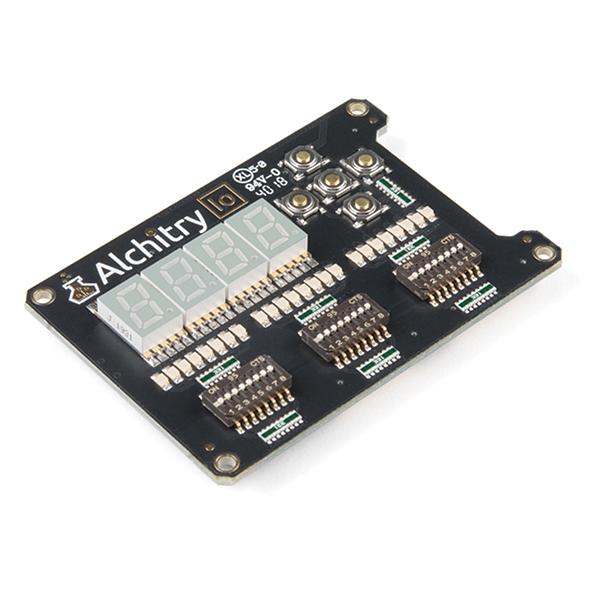

Alchitry Io Element Board
The Alchitry Io is an Element board packed with input and output peripherals for learning FPGA development. It features 7-segment displays, push buttons, LEDs, and DIP switches — perfect for working through beginner FPGA tutorials and understanding digital logic fundamentals.
The Io Element connects to the underside of your Alchitry Au or Alchitry Cu board via four bottom-mounted connectors.
Key Features
- 4× 7-Segment LED Displays – For numeric output
- 5× Momentary Push Buttons – User input
- 24× Basic LEDs – Visual output indicators
- 24× DIP Switches – Binary input switches
- Compatible – Works with Alchitry Au, Au+, and Cu boards
Ideal For
- Beginner FPGA tutorials and exercises
- Learning digital logic and combinational circuits
- Testing and debugging FPGA designs
Package Contents
- 1× Alchitry Io Element Board
Note: The Io Element has bottom connectors only and does not support stacking additional Element boards on top.
The Alchitry Io Element Board appears in the following collections:
SKU SF-DEV-15849
