Alchitry Br Prototype Element Board

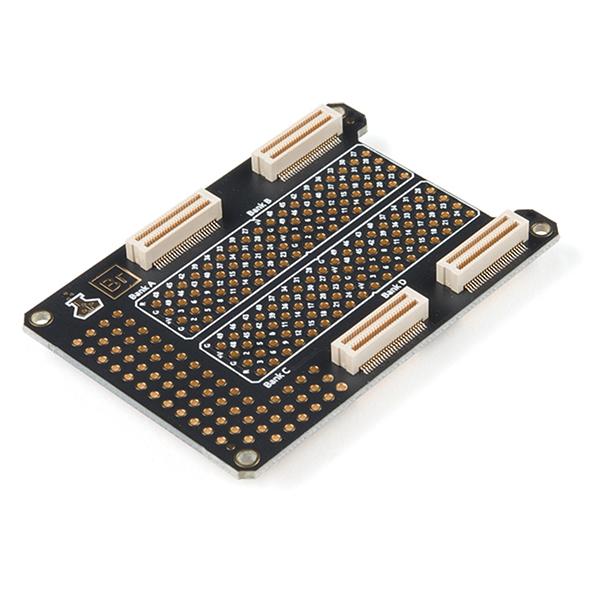

The Alchitry Br is a prototyping Element board for the Alchitry Au and Alchitry Cu FPGA development boards. It breaks out all signals from the four headers of your Au or Cu and provides a large prototyping area with a 0.1" pin grid for building custom circuits.

The Br Element features four connectors on top and four on the bottom for maximum stackability. Add optional female headers (sold separately) to the prototyping area to create a breadboard-style test surface for temporary circuits.

Key Features

• Full Signal Breakout – All header signals from Au/Cu broken out
• Large Prototyping Area – 0.1" pin grid for custom circuits
• Stackable Design – Four top and four bottom connectors
• Compatible – Works with Alchitry Au, Au+, and Cu boards

Ideal For

• Prototyping custom FPGA circuits
• Testing new designs before committing to PCBs
• Expanding FPGA I/O with custom hardware

Package Contents

• 1× Alchitry Br Prototype Element Board
