Adafruit GPIO Reference Card for Raspberry Pi Model B [AF-2262]

Adafruit GPIO Reference Card for Raspberry Pi Model B

Adafruit GPIO Reference Card for Raspberry Pi Model B [AF-2262]

Price: $3.81
Fastest delivery: Friday, 3rd December
Order before 2pm Wednesday, 1st December
We have 1 in our Sydney warehouse.
Need more than 1 unit?
🔒 Secure transaction
Ships from: Little Bird (SYD) → You
Ships from: Supplier → Little Bird (SYD) → You

Product Image Gallery

Photo of Adafruit GPIO Reference Card for Raspberry Pi Model B Photo of Adafruit GPIO Reference Card for Raspberry Pi Model B Photo of Adafruit GPIO Reference Card for Raspberry Pi Model B Photo of Adafruit GPIO Reference Card for Raspberry Pi Model B

Description

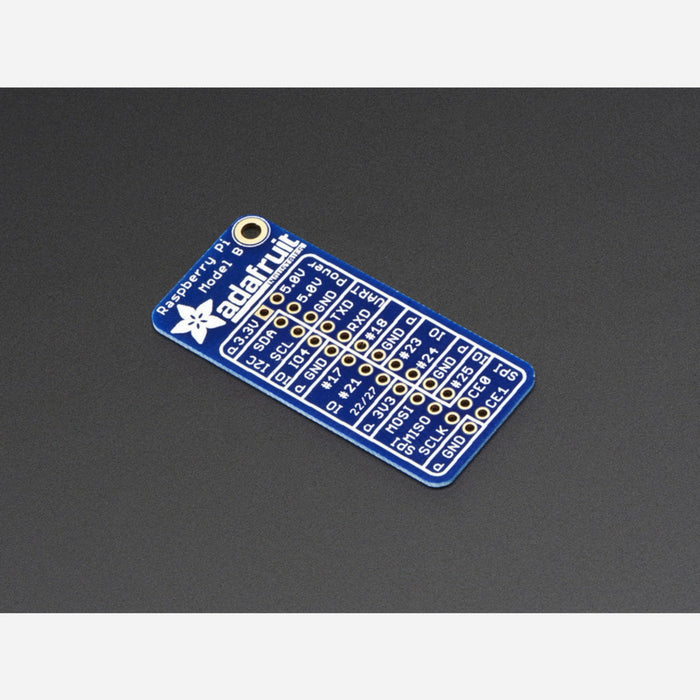

This board makes connecting wires to the Raspberry Pi GPIO incredibly easy.  It's a reference board that makes it really easy to see if you're connecting your wires correctly.  We liked the Pi GPIO Reference Board from Low Voltage Labs so much that we worked with them to license their design! We made some changes to the Low Voltage version - including grouping the pins into categories like I2C, IO, UART, SPI, and power.

It's only 0.8mm thick, idiot proof (you can't put it on backwards...), and makes a great keychain for the Pi enthusiast. Simply slide it onto the 2x13 GPIO header, then you can plug in premium jumper wires with female sockets on top as shown.

This version works with the Raspberry Pi Model B.  It does not work with the Raspberry Pi Model B+ but we do have a B+ version as well!

Please note, on Revision A we made a typo! The pin labeled #21 should be labeled #21/27 and the pin below it should be labeled #22!
