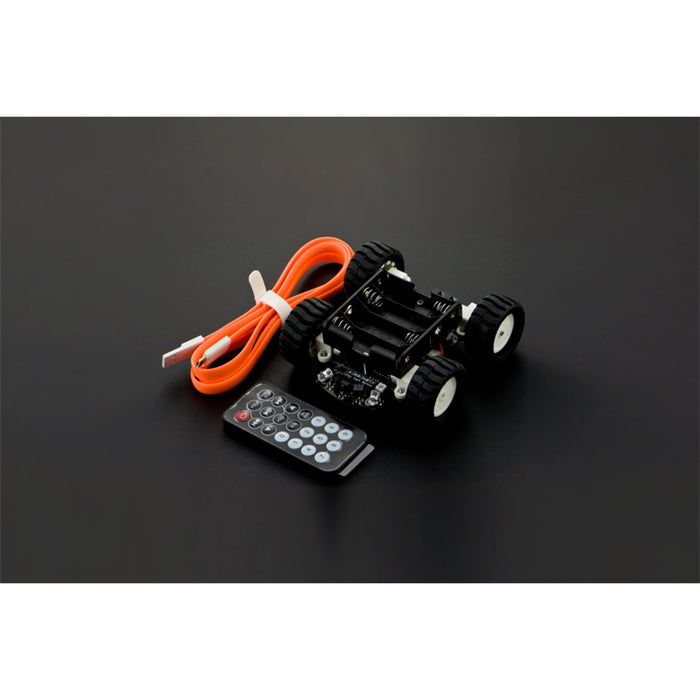

4WD MiniQ Arduino Robot V2.0
Discontinued
The MiniQ 4WD V2.0 is a fully assembled four-wheel-drive robot kit built around an Arduino Leonardo controller (ATmega32u4). Designed for education, it comes ready to use — just add 4× AA batteries and connect to the Arduino IDE.
The robot integrates a wide range of onboard sensors and outputs, including infrared line-tracking sensors, IR obstacle detection, light sensors, an RGB LED, a buzzer, and additional buttons. An IR remote controller is included for wireless control out of the box.
Key Features
- Arduino Leonardo (ATmega32u4) – Program directly via Micro-USB with the Arduino IDE
- 4WD Drive System – Four gear motors with a max speed of 79 cm/s
- Onboard Sensors – IR line-tracking, IR obstacle detection, photosensitive diodes, and light sensors
- Outputs – RGB LED, buzzer, and motor encoders
- IR Remote Control – Included for wireless operation
- 8 Beginner Lessons – From basic operation through to line-following, obstacle avoidance, and remote control
Included Lessons
- Lesson 1 – Get to Know Your Robot
- Lesson 2 – Control Buzzer
- Lesson 3 – Light Direction Indication
- Lesson 4 – Line Following
- Lesson 5 – RGB LED
- Lesson 6 – Obstacle Avoidance
- Lesson 7 – Encoder
- Lesson 8 – IR Remote Control
Specifications
- Controller – ATmega32u4 (Arduino Leonardo)
- Power Supply – 4× AA batteries or Micro-USB
- Working Voltage – 4.5–6 V
- Drive Mode – 4WD
- Max Speed – 79 cm/s
- Dimensions – 115 × 110 × 45 mm
Ideal For
- Learning Arduino programming and robotics
- Classroom STEM education
- Line-following and obstacle avoidance projects
Package Contents
- 1× MiniQ 4WD V2.0 Robot (fully assembled)
- 1× IR Remote Controller
- 1× Micro-USB Cable
