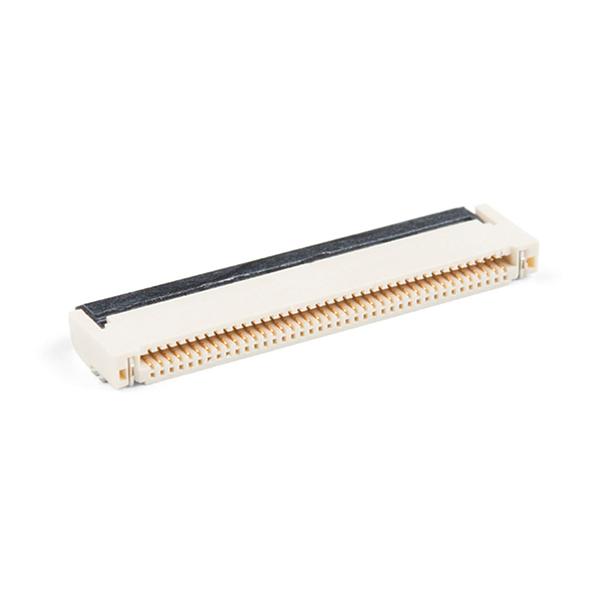

40 Pin 0.5mm FPC, SMD, Both Sides
Discontinued
A 40-pin surface-mount FPC (Flexible Printed Circuit) connector with contacts on both sides. This dual-sided design allows the cable to be inserted with contacts facing either up or down, providing flexibility in PCB layout and reducing the number of connector variants needed.
Compatible with 0.5mm pitch 40-pin FFC/FPC cables, including those used with 1.77″/1.8″ TFT LCD displays (160×128 RGB).
Key Features
- Dual-Sided Contacts – Cable can be inserted in either orientation
- Surface Mount (SMD) – Designed for reflow soldering onto PCBs
- 40-Pin, 0.5mm Pitch – Standard FPC/FFC connector size
Specifications
- Pin Count – 40
- Pitch – 0.5mm
- Mounting – Surface mount (SMD)
- Contact Style – Both sides (dual-sided)
Ideal For
- TFT LCD display connections (1.77″/1.8″ 160×128 RGB)
- Custom PCB designs requiring flexible cable orientation
- Reducing connector inventory with a single dual-sided part
Package Contents
- 1× 40-Pin 0.5mm FPC SMD Connector (both sides)
Note: TFT display and cable are not included.
