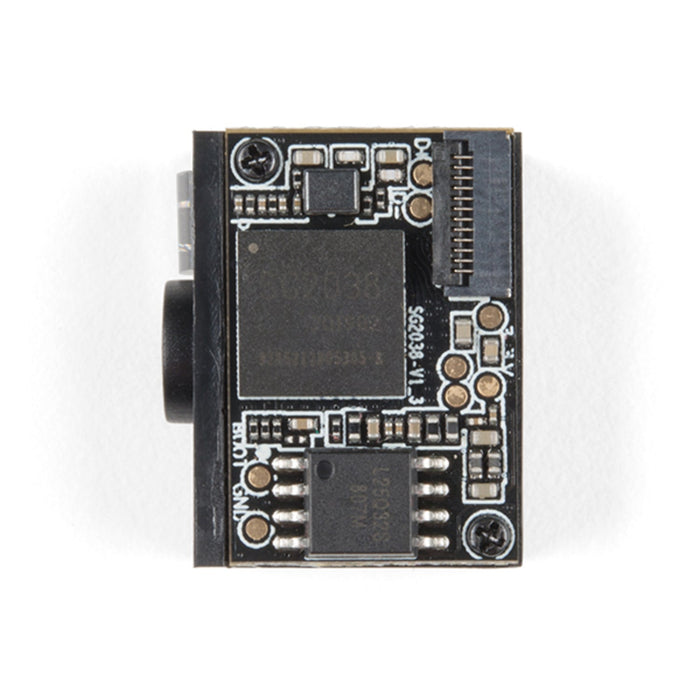

2D Barcode Scanner Module - DE2120

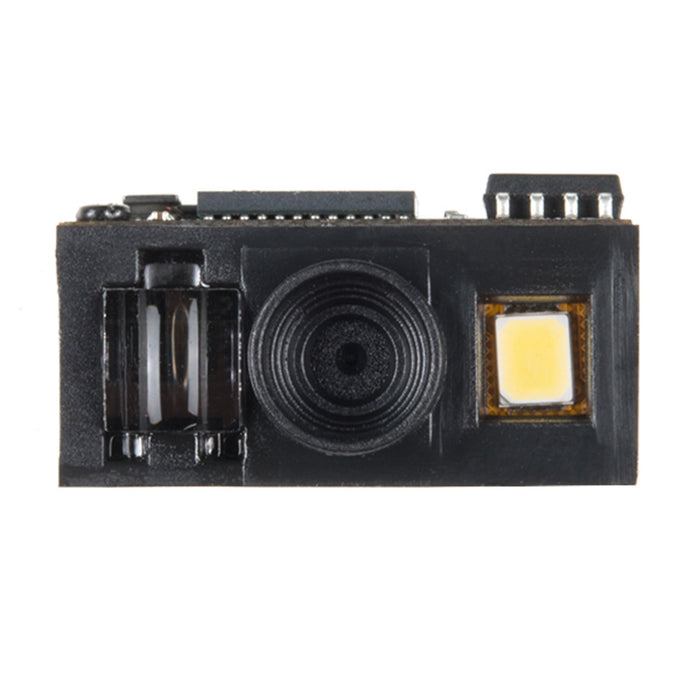

The DYScan DE2120 is a compact 2D barcode scanner module that reads 20 different barcode symbologies — both 1D (UPC, EAN, Code 128, etc.) and 2D (QR, Data Matrix, etc.). It uses an on-board camera with image processing to identify and decode barcodes, and features illumination and red line projection LEDs.
This is the bare scan engine module. It connects via a 12-position 0.5mm flat-flex cable (included), so you'll need the mating FPC connector or a breakout board for easy prototyping. The module supports TTL serial and USB interfaces, with USB operating in Full-Speed HID mode for keyboard emulation or virtual serial communication.
Key Features
- 20 Barcode Symbologies – Reads both 1D and 2D barcodes including UPC and QR codes
- Camera-Based Scanning – On-board image processing for reliable decoding
- Dual Interface – TTL serial and USB (HID keyboard or virtual serial)
- Illumination & Aiming LEDs – Built-in lighting and red line projection
- Configurable – Set options via serial interface or by scanning command barcodes

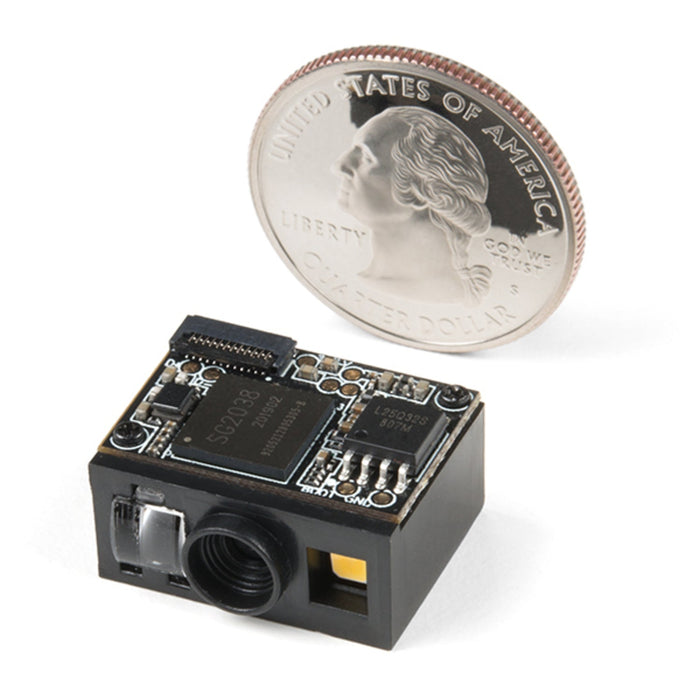

- Compact Module – Tiny form factor for embedding into custom hardware
Ideal For
- Custom barcode scanning hardware
- Embedded point-of-sale systems
- Kiosk and terminal integration
- QR code reader projects

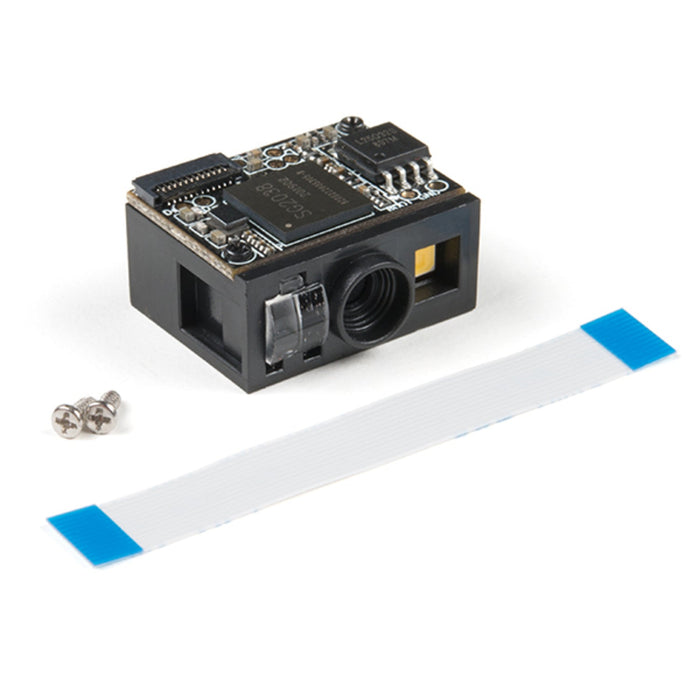

Package Contents
- 1× DE2120 2D Barcode Scanner Module
- 1× 12-Pin 0.5mm FPC Cable
Note: This is a SparkX experimental product. It is tested but comes with no guarantees. For support, visit the SparkFun Forum.
