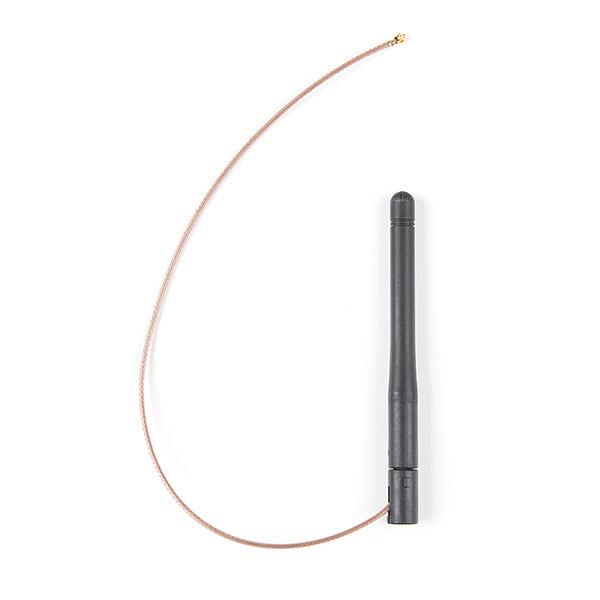

2.4GHz Terminal Antenna, I-PEX MHF® I (U.FL), 250mm RG-178
Discontinued
The GW.17 Click-in Terminal Antenna is a high-performance 2.4 GHz dipole designed for quick assembly onto finished products. The click-in plastic head snaps into a panel cutout, eliminating the need for a separate cable assembly and bulky mating connector. It comes with 250 mm of low-loss RG-178 cable and an IPEX MHF I (U.FL) connector ready to plug in.
The antenna delivers stable radiation performance whether mounted straight or bent at 90°, with or without a ground plane — making it versatile across a wide range of enclosure designs.
Key Features
- Click-In Mounting – Snaps into panel cutouts for fast, tool-free assembly
- 2.7 dBi Peak Gain (Straight) – 1.6 dBi when bent 90°
- 74% Efficiency – Consistent in both straight and bent positions
- 250 mm RG-178 Cable – Low-loss coax with IPEX MHF I (U.FL) connector
- Omni-Directional – Linear polarisation with 360° coverage
- Wide Temperature Range – −40 °C to +85 °C
Specifications
- Frequency: 2.4–2.5 GHz
- Peak Gain (Straight): 2.7 dBi
- Peak Gain (Bent): 1.6 dBi
- Average Gain: −1.3 dBi (both orientations)
- Impedance: 50 Ω
- Max Input Power: 2 W
- Antenna Length: 112.6 mm
- Antenna Diameter: 9.3 mm
- Body Material: TPU
- Temperature: −40 °C to +85 °C
- Humidity: Non-condensing, 65 °C @ 95% RH
Ideal For
- IoT devices and finished product enclosures
- WiFi and Bluetooth gateways
- Industrial wireless equipment
Package Contents
- 1× GW.17 2.4 GHz Terminal Antenna with 250 mm RG-178 Cable (IPEX MHF I / U.FL)
