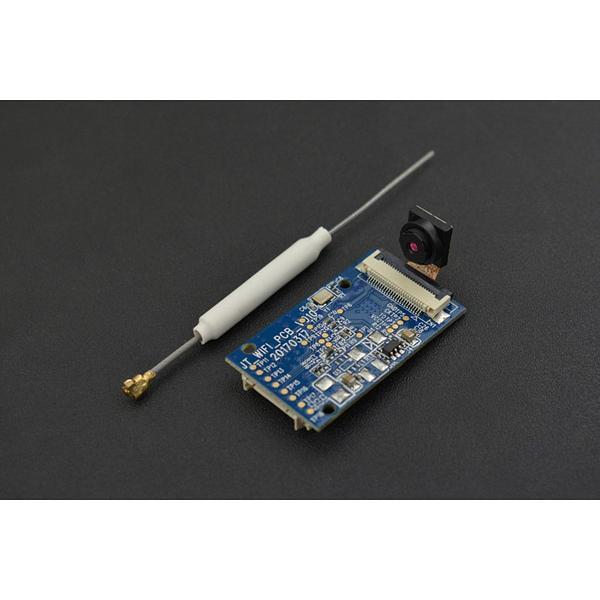

2.4G Wireless Video Transmission Module (640*480 Resolution)
Discontinued
A compact 2.4 GHz wireless video transmission module from DFRobot, comprising a PCB board, camera, and WiFi antenna. Once powered on, the module automatically creates a WiFi hotspot that streams live video to a smartphone or tablet via a companion app (iOS and Android). It supports real-time viewing, video recording, photo capture, and VR mode with compatible goggles.
The onboard blue LED indicates connection status — solid blue when connected, flashing when disconnected. At just 35 × 21 × 6.7 mm, the module is small enough for drones, mobile cameras, and other moving platforms.
Key Features
- 300K Pixel Camera – 25–30 fps with dynamic JPEG compression
- WiFi Streaming – 2.4 GHz hotspot, ~50 m range in open areas
- iOS & Android App – Live view, video recording, photo capture, and VR mode
- Thumb-Sized Module – 35 × 21 × 6.7 mm, ideal for space-constrained builds
- Low Power – 0.8 W at 5 V ± 0.1 V
- Status LED – Blue indicator for connection state
Specifications
- Resolution: 300K pixels (640 × 480)
- Frame Rate: 25–30 fps (environment-dependent)
- Frequency: 2.4–2.4835 GHz
- Modulation: BPSK / QPSK / 16-QAM / 64-QAM
- RF Output Power: 14 dBm (802.11n)
- Receiving Sensitivity: −66 dBm @ 10% (802.11n 20 MHz MCS7)
- Transmission Distance: ~50 m (open area, low interference)
- Angle of View: 60°
- Operating Voltage: 5 V ± 0.1 V
- Power Consumption: 0.8 W
- Connector: 8-pin, 1.25 mm pitch
- Operating Temperature: 0–50 °C
- Dimensions: 35 × 21 × 6.7 mm
- App Requirements: Android 4.3+ / iOS 8.0+
- Video Format: AVI
- Image Format: JPEG
Ideal For
- FPV drones and UAVs
- Mobile camera platforms and robots
- Driving recorders and dashcams
- Remote monitoring and surveillance
Package Contents
- 1× 2.4 GHz Wireless Video Transmission Module with Camera and Antenna
