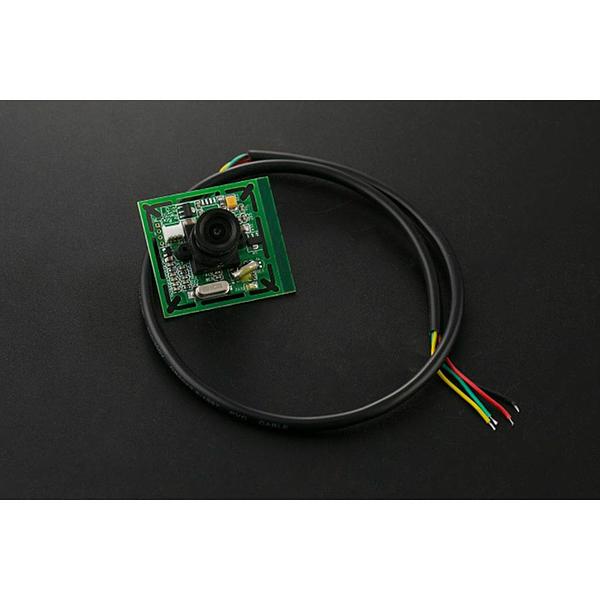

0.3M Pixel Serial JPEG Camera Module For Arduino
Discontinued
The ZM 0.3 Megapixel Serial JPEG Camera Module captures still images and transmits them over a serial (RS232) interface at up to 115200 bps. Built around the OmniVision OV7725 VGA colour sensor with built-in JPEG codec, this compact module requires no external DRAM and operates at low power.
With support for VGA, QVGA, and 160×120 resolutions, this camera is well suited for embedded imaging, remote monitoring, and robotics applications. A 5V supply and simple serial protocol make integration straightforward.
Key Features
- 0.3 Megapixel Sensor – OmniVision OV7725 VGA colour sensor
- Built-in JPEG Codec – Captures compressed images without external processing
- RS232 Serial Interface – Default 115200 baud for image transfer
- Multiple Resolutions – VGA, QVGA, and 160×120
- Low Power – 80–100 mA current consumption at 5V
- Compact Size – 38.35 × 38.35 × 32 mm
Specifications
- Supply Voltage: 5V DC
- Current Consumption: 80–100 mA
- Interface: RS232
- Resolutions: VGA / QVGA / 160×120
- Default Baud Rate: 115200
- Dimensions: 38.35 × 38.35 × 32 mm
Wiring (Included Cable)
- Red – +5V
- Black – GND
- Green – RS232 RX
- Yellow – RS232 TX
Ideal For
- Embedded imaging and control systems
- Security and remote monitoring
- Object detection and recognition
- Robotics, industrial, and vehicle applications
Package Contents
- 1× 0.3M Pixel Serial JPEG Camera Module
- 1× 4-Wire Cable
Note: This module uses the RS232 protocol. An RS232-to-TTL converter is required to interface with standard Arduino boards.
