14" 4K IPS IPS Bar Touch Display (Compatible with Raspberry Pi 5 / 4B, LattePanda Sigma / Delta)
66 units will be available shortly.
The 14-inch 4K IPS Type-C bar capacitive touch screen is designed specifically as a secondary monitor, featuring a unique 3.5:1 aspect ratio and 4K resolution. This bar-shaped screen provides crisp visuals, making it ideal for users who want to enhance their workspace efficiency. Compatible with various devices through Type-C and HDMI interfaces, it seamlessly integrates with laptops, desktops, and mini PCs like LattePanda and Raspberry Pi.
4K High-Definition IPS Panel Display
The 3840 × 1100 resolution delivers sharp text and graphics, perfect for tasks such as data monitoring or media editing. The IPS panel offers a wide 170° viewing angle, ensuring clear visibility from multiple positions.
Optical Bonding Technology
Optical Bonding Technology
The optical bonding technology used in this screen enhances clarity by eliminating air gaps between layers, reducing glare, and improving touch sensitivity. This makes the screen more readable in different lighting conditions, while also protecting it from dust ingress.
Full-Function Type-C Interface for Simplified Connectivity
The Type-C interface supports video, audio, and touch signals with a single cable, streamlining setup and reducing desk clutter. It also supports reverse PD power delivery, providing power to the screen through the same cable used for data transmission, making it highly convenient for users who want a clean and efficient workspace.
FEATURES
FEATURES
3840×1100 high-definition display
Unique 3.5:1 bar-shaped display ratio
IPS panel with a viewing angle of 170° and a hardness of ≥6H
Optical bonding technology, resistant to dust
Supports 10-point capacitive touch
Supports dual-channel audio output
Supports both Type-C and HDMI video transmission
Full-featured Type-C interface supports video, audio, and touch signals in a single cable connection, and supports reverse PD power supply
Type-C interface does not require distinguishing between power and data interfaces, supports blind insertion
Compatible with installation on Raspberry Pi 4B, Raspberry Pi 5, LattePanda Sigma, and LattePanda Delta 3
APPLICATIONS

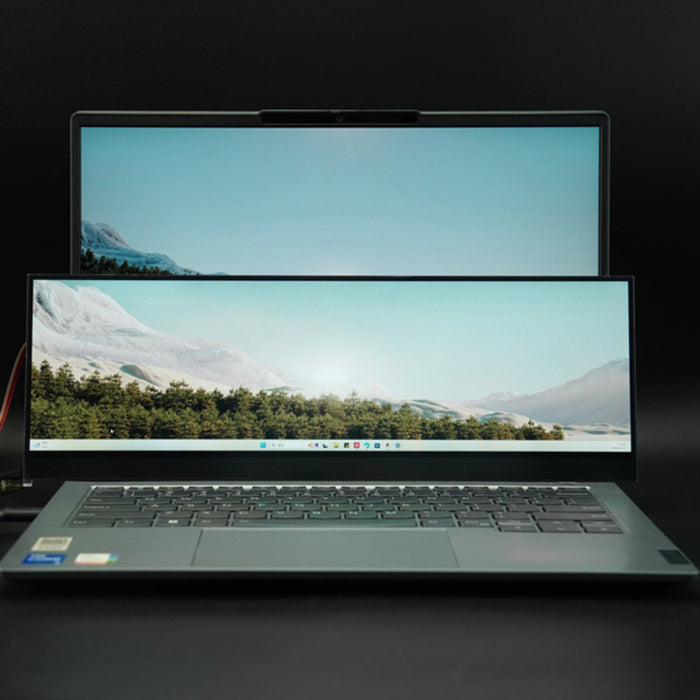

Computer Secondary Screen for Multitasking
Stock Monitoring, System Data, and Chat Windows
SPECIFICATION
Screen Specifications
LCD Size: 14 inches
Resolution: 3840 × 1100
Active Area: 344.2 (H) × 98.6 (V) mm
Pixel Pitch: 0.08964 (H) × 0.08964 (V) mm
Color Gamut: 72% NTSC
Brightness: 300 cd/m²
Contrast Ratio: 1200:1
Refresh Rate: 60 Hz
Transmittance: ≥86%
Viewing Angle: 170° (Horizontal and Vertical)
Touch Points: 10-point capacitive touch
Surface Hardness: ≥6H
Surface Treatment: Anti-Fingerprint (AF) coating
Bonding Technology: Optical bonding
Overall Dimensions: 369.5 (W) × 288.6 (H) × 5.1 (D) mm
Weight: 709 g (including packaging)
Driver Board Specifications
Power Interface: Type-C
Power Input: PD 3.0 protocol, 5V~20V
Display Interfaces: Type-C / Mini HDMI
Touch Interface: Type-C
Speaker Interface: MX1.25-2P
Raspberry Pi Mounting Holes: 58 mm × 49 mm
LattePanda 3 Delta Mounting Holes: 118 mm × 71 mm
Mounting Hole Diameter: 3.0 mm
Mounting Hole Spacing: 118 mm × 86 mm
Driver Board Dimensions: 125 (W) × 93 (H) × 9.6 (D) mm
Touch Board Specifications
Touch Interface: MX1.25-4P
Mounting Hole Diameter: 3.0 mm
Mounting Hole Spacing: 42 mm × 18.6 mm
Touch Board Dimensions: 50 (W) × 26 (H) × 4.8 (D) mm
DOCUMENTS
DOCUMENTS
14" 3840 × 1100 IPS Type-C bar capacitive touch screen x1
Type-C and HDMI display driver board x1
Display connection cable (320mm) x1
Touch connection cable (300mm) x1
Dual-head Type-C full-function data cable (0.2m) x1
Mini HDMI to micro HDMI data cable (0.25m) x1
USB A to C data cable (0.25m) x1
Screw and copper pillar mounting accessory kit x1
