USB Power Detector 3-10V, 0-3A

A compact USB power detector that displays charging voltage and current simultaneously on a single screen. Useful for monitoring power consumption of Arduino boards, USB devices, sensors, and other modules in real time.

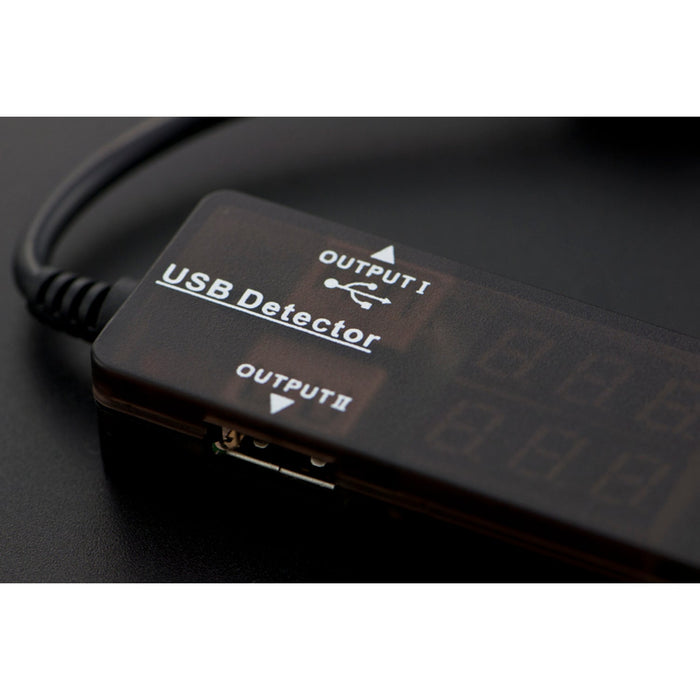

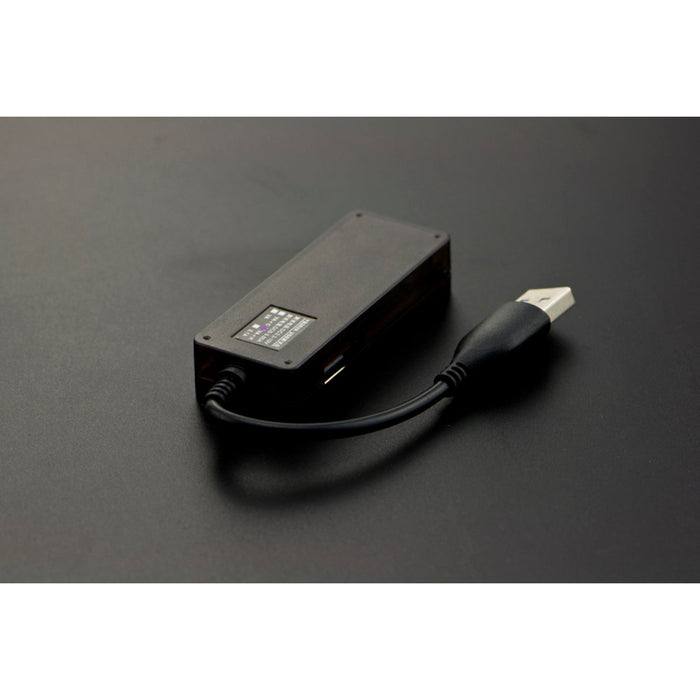

The detector sits inline between a USB power source and device, with one input and two output ports. Output I supports both data communication and charging, while Output II provides charging voltage output only.

Key Features

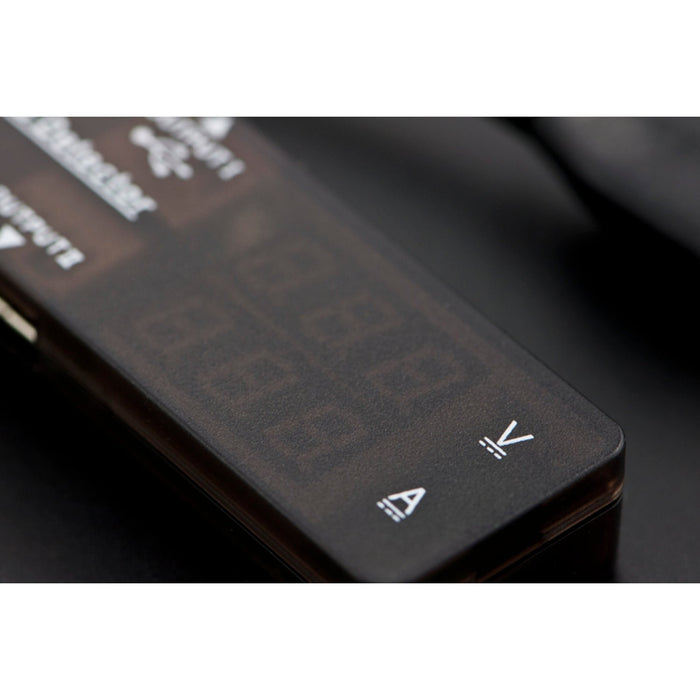

• Real-Time Display – Shows voltage and current simultaneously on one screen
• Wide Voltage Range – Supports 3.2 V to 10 V input
• Current Measurement – Measures up to 3 A
• Capacity Tracking – Accumulates charge in mAh (up to 99,999 mAh)
• Dual Output Ports – Output I for data + charging, Output II for charging only
• Compact Design – Small inline form factor for easy bench use

Specifications

• Input Voltage – 3.2–10 V
• Current Range – 0–3 A
• Capacity Range – 0–99,999 mAh
• Power Range – 0–99.9 W
• Working Current – < 20 mA
• Refresh Rate – 500 ms
• Accuracy – ±1% (±2 digits)
• Dimensions – 69 × 26 × 19 mm

Ideal For

• Monitoring Arduino and microcontroller power draw
• Testing USB charger output voltage and current
• Measuring battery charge capacity
• Debugging USB-powered sensor modules

Package Contents

• 1× USB Power Detector
