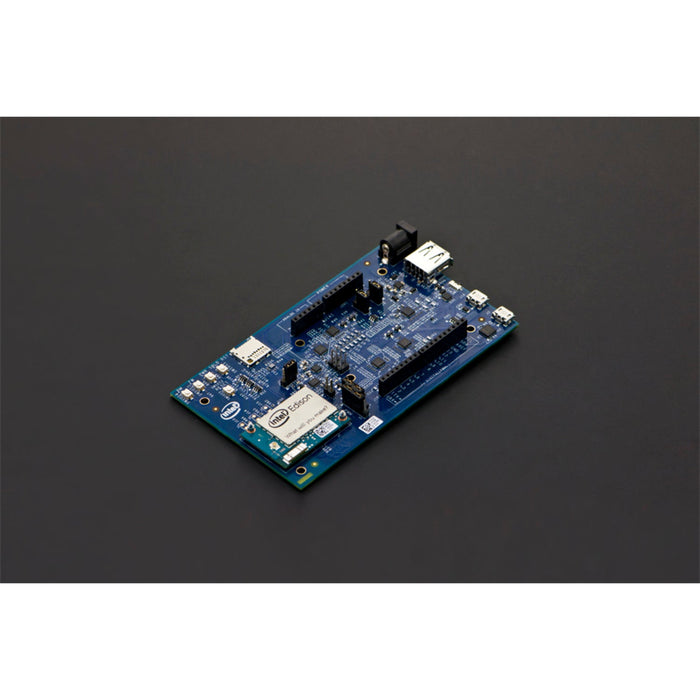

Intel Edison with Arduino Breakout Kit

Intel Edison with Arduino Breakout Kit

What will you make? The Intel Edison development platform is the first in a series of low-cost, product-ready, general purpose compute platforms that help lower the barriers to entry for entrepreneurs of all sizes-from pro makers to consumer electronics and companies working in the Internet of Things (IoT). The Intel Edison development platform packs a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a wide range of customers.


FEATURES

  • Uses a 22nm Intel SoC that includes a dual core, dual threaded Intel Atom CPU at 500MHz and a 32-bit Intel Quark microcontroller at 100 MHz. It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp
  • The Intel Edison module will initially support development with Arduino* and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future
  • The Intel Edison module includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service

SPECIFICATIONS

  • CPU: 22nm Intel SoC that includes a dual core, dual threaded Intel Atom CPU at 500MHz and a 32-bit Intel Quark microcontroller at 100 MHz
  • RAM: 1 GB LPDDR3 @800MHz
  • Flash: 4GB eMMC and SDIO interface
  • GPIO: 70 pins
  • WiFi: Dual-band 802.11 (a/b/g/n)
  • Bluetooth: Bluetooth 2.1/4.0
  • USB: 1 USB-OTG
  • Other interfaces: SPI, UART, I2C, PWM
  • Working Voltage: 7 to 15 VDC
  • Power: Standby (No radios): 13 mW
  • Standby (Bluetooth 4.0): 21.5 mW
  • Standby (Wi-Fi): 35 mW
  • Size: 35.5mm*25.0mm*3.9mm(1.40"*0.98"*0.15")

DOCUMENTS


SHIPPING LIST

  • Intel Edison with Arduino Breakout Kit x1

The Intel Edison with Arduino Breakout Kit appears in the following collections:

SKU DF-DFR0336
